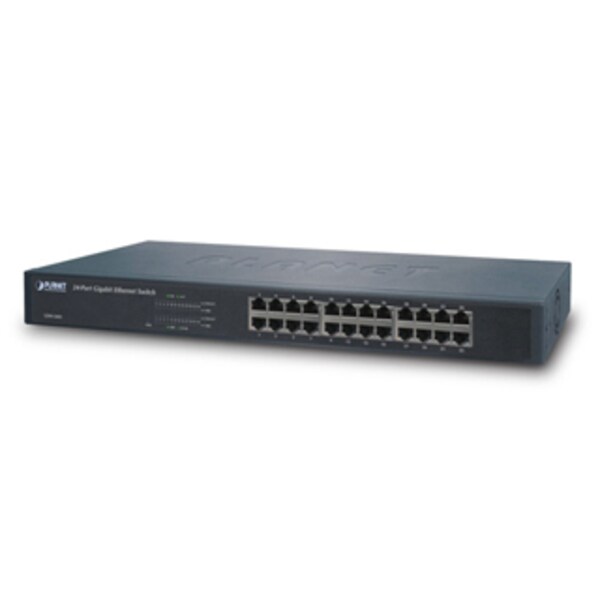

24-Port Gigabit Ethernet Switch


24-Port 10/100/1000BASE-T Gigabit Ethernet Switch


Physical Port

  • 24 10/100/1000BASE-T Gigabit Ethernet ports
  • Supports auto MDI/MDI-X function



Layer 2 Features

  • Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • Integrated address look-up engine, supporting 8K absolute MAC addresses
  • 9K jumbo packet support
  • Power saving ability for Green networking
  • IEEE 802.1Q VLAN packet transparency support
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Hardware-based 10/100BASE-TX, half/full duplex and 1000BASE-T full duplex mode, flow control and auto-negotiation
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol



Hardware Features

  • 100~240V AC, 0.17A, 50~60Hz universal power input
  • DIP switch for standard/flow control off/VLAN/Extend mode selection
  • FCC, CE class A compliant
SKU GSW-2401
(0)No Reviews yet
Back

Details

Hardware Specifications
Hardware Version9
10/100/1000BASE-T MDI/MDIX Ports24
DIP SwitchOperation mode selection
- Standard
- Flow control off
- VLAN
- Extend
Weight1.9kg
Power Consumption/Dissipation14.6 watts/49 BTU
Power Requirements100~240V AC, 0.17A, 50-60Hz
Dimensions (W x D x H)440 x 208 x 44mm, 1U height
Switching
Switch Processing SchemeStore-and-Forward
Throughput (packet per second)35.7Mpps
Switch Fabric48Gbps
Address Table8K entries
Jumbo Packet Size9K
Flow ControlBack pressure for half duplex
IEEE 802.3x Pause frame for full duplex
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full-Duplex Flow Control)
IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
OperatingOperating Temperature: 0~50 degrees C
Relative Humidity: 5% to 95% (non-condensing)
StorageTemperature: -10~70 degrees C
Relative Humidity: 5% to 95% (non-condensing)
