PWR-120-48
DC Single Output Industrial DIN Rail Power Supply Units

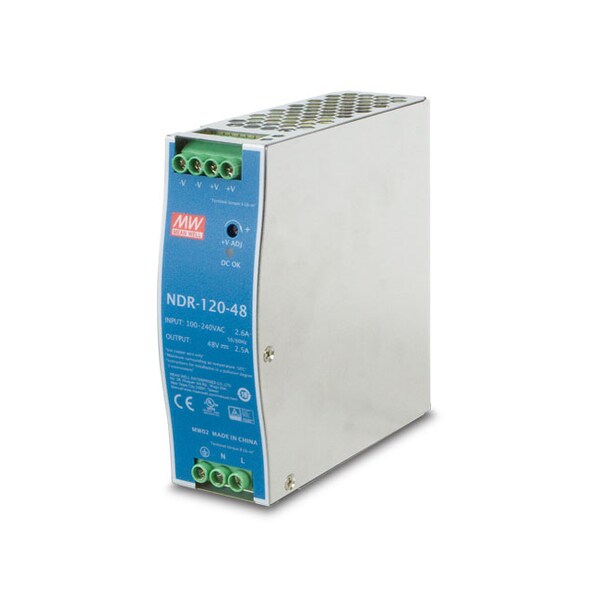

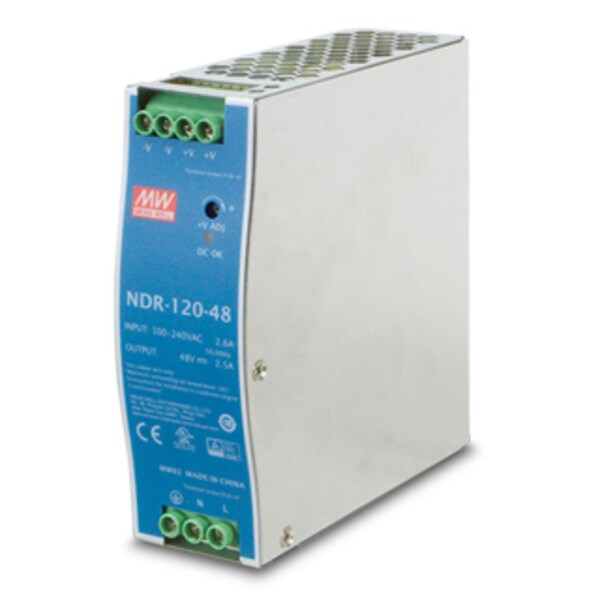

PWR-120-48 (MEAN WELL/NDR-120-48)
- Universal AC input for full operation
- Protection features: short circuit, overload, over voltage and over temperature
- Cooling by free air convection
- DIN rail TS-35/7.5 or 15 installation
- UL 508 (industrial control equipment) approved
- EN61000-6-2 (EN50082-2) industrial immunity level
- 100% full load burn-in test
Details
| PWR-120-48 (MEAN WELL/NDR-120-48) | |
|---|---|
| Hardware Version | 2 |
| Dimensions (W x H x D) | 40 x 125 x 113 mm |
| Weight (kg) | 0.6kg |
| Input Voltage | 100-240V AC,50/60Hz, 2.25A |
| Power Output | 120 watts, 48V, 2.5A |
| Temperature | Operating:-20~70 degrees C (**) Storage:-40~85 degrees C |
| Humidity | Operating: 20 ~ 95% Storage: 10 ~ 95% (non-condensing) |
| Installation | DIN rail TS-35/7.5 or 15 |
| Safety & Function | Ul508, TUV EN60950-1 approved (meeting EN60204-1) |
| *Note | *The specification is for PWR-120-48 hardware version 2 only. **Please refer to output load derating curve from product specification. |
