A22KITB

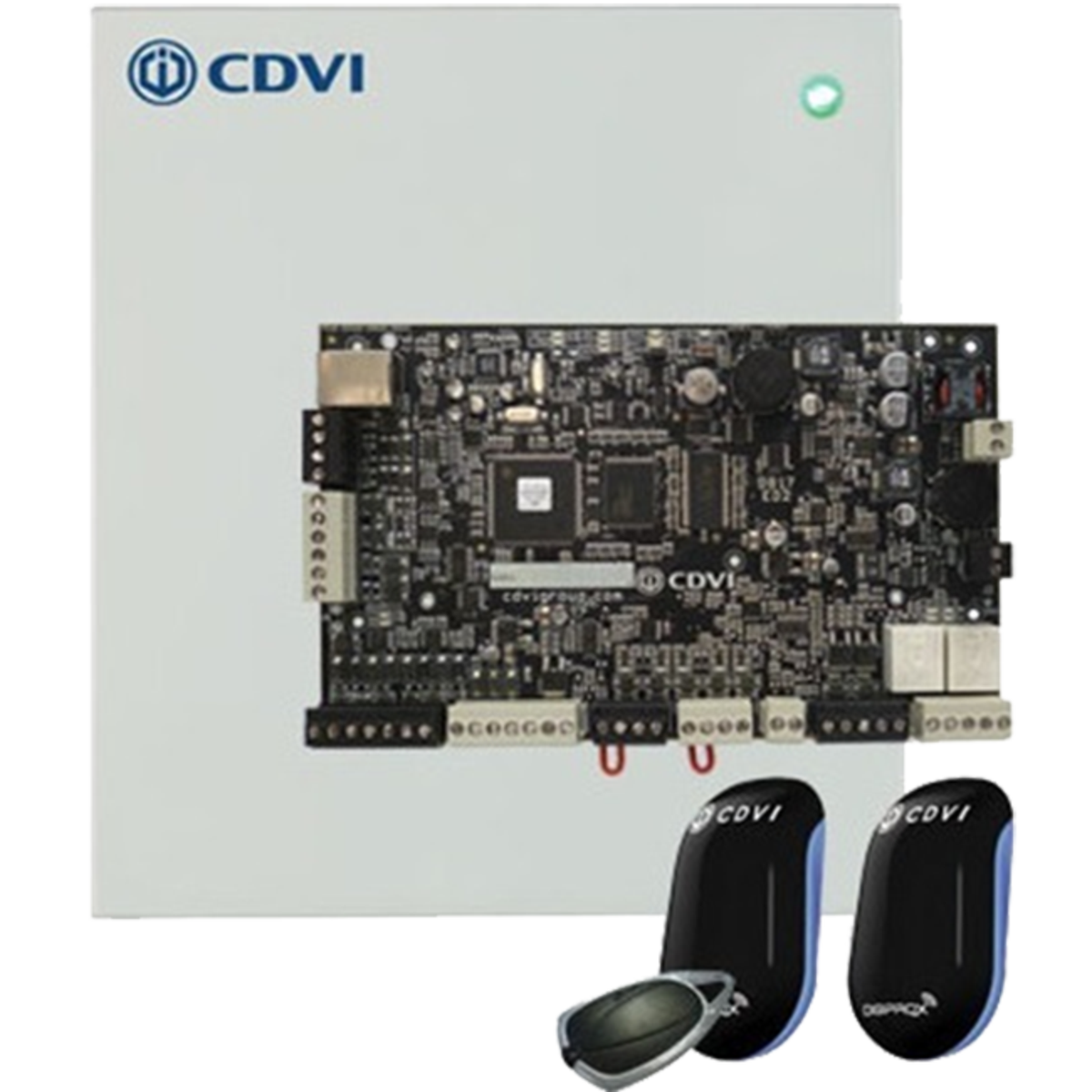

ATRIUM 2-Door Controller Kit - A22 + (2 x NANOPB)

  • 1 x A22
  • 2 x NANOPB (black proximity readers)
  • 1 x Master card
  • 1 x Programming card
  • 1 x FREE Management Software
  • 15 Credentials
  • (5 x CS, 5 x KTAG and 5 x DISCTAG)
  • Manage 10 doors with five A22 modules
  • One module - Two applications (controller or expander)
  • On-board Embedded Web Server (AES encryption)
  • Web server (A22 only) and software are multi-languages support
  • Pre-assembled universal power supply (120V / 240V)
  • Quick and easy card enrollment procedure
  • Auto-detect hardware modules
  • Mix and Match existing AC22 controllers and AX22 expanders with A22 modules
  • 4 dedicated door contact & request-to-exit inputs
  • 2 additional multi-purpose inputs
  • Lock outputs: 2 (each lock output provide 750mA@12Vdc)
  • Relay outputs: 2 form C relays, rated at 5A/28Vdc, N.C./N.O.
  • 2 open collector outputs (25mA/each)
  • 1220m (4000ft) 4 conductor RS-485 expansion bus
  •  (No jumpers or DIP switches)
  • Auto-resume fuseless technology
  • Ultra fast firmware update (less than 10 seconds)
  • FREE Management Software
  • Wiegand & ABA Track II magnetic stripe compatible
  • Maintenance-friendly snap on terminal connectors
  • Comprehensive LED status indicators
  • Enclosure dimensions: 11.4" H x 11" L x 3" D (29 x 28 x 8 cm)
SKU A22KITB
