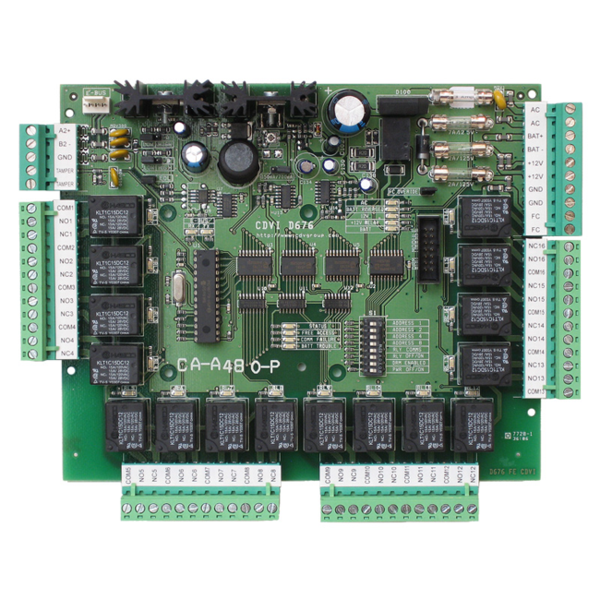

CA-A480-ANB

SKU CA-A480-ANB
(0)No Reviews yet
Back

Details

Features:
  • 16 on-board floor control relays
  • Fire control input
  • Control up to 64 floors and 2 elevator cabs
  • Destination reporting (requires CA-A482-P Destination Reporting Module)
  • Connects directly to the RS-485 E-BUS
  • Backup battery with selectable battery charge current
  • Individual schedules per floor with on-board 12VDC power supply
  • Fully supervised with comprehensive LED display
Input Specifications:
  • Fire alarm: 1
  • Tamper: 1
Output Specifications:
  • Relay outputs: 16 form C relays rated at 20A/16VDC (10A/250VAC), N.C./N.O
