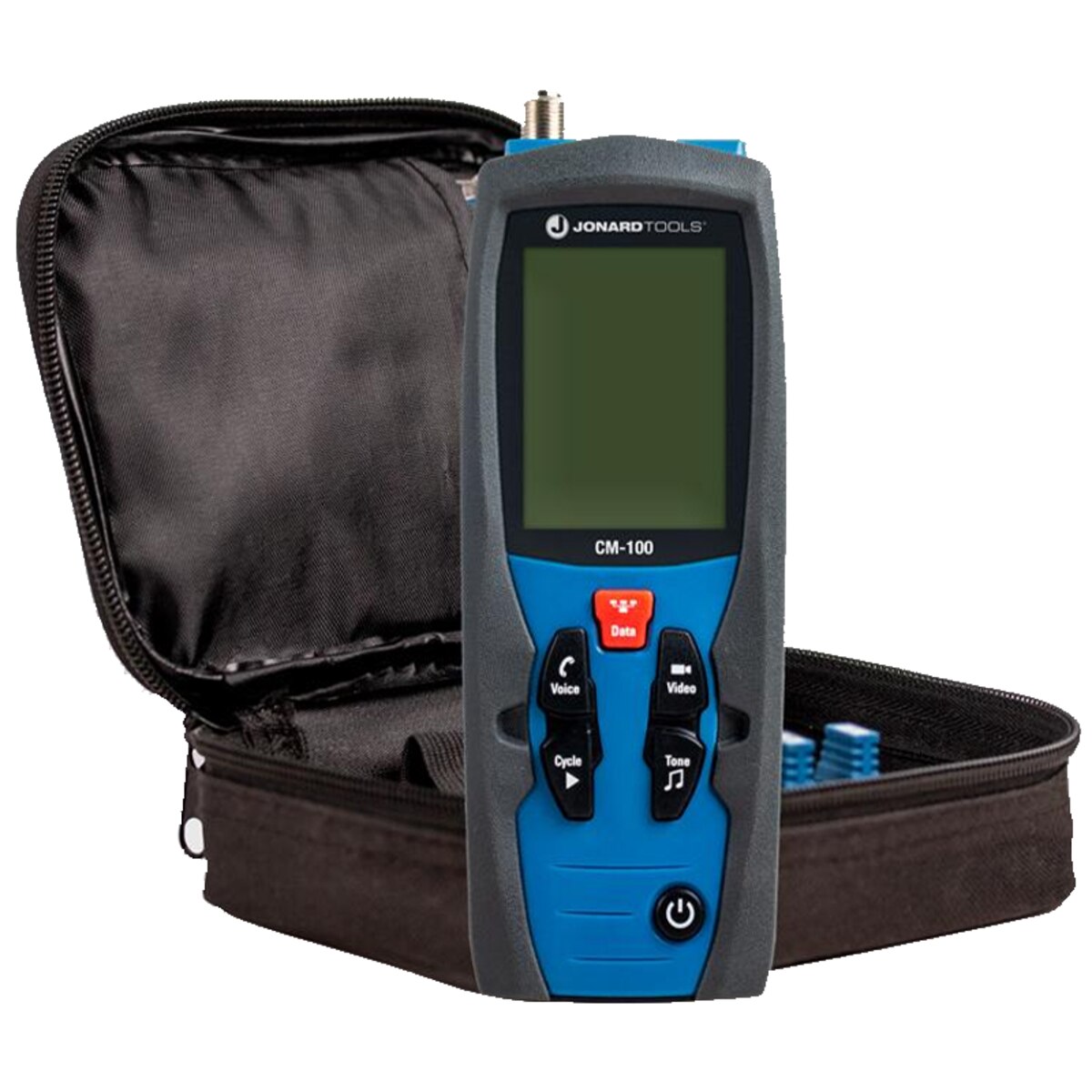

CM-100
Cable Mapper & Toner For COAX & LAN
Designed for finding and identifying multiple COAX and LAN cables in main cable boxes, this cable mapper and toner is the perfect tool for use on cables for CATV, network installations, satellite installations, audio-video equipment, CCTV, and security & alarm installations. This 8-way cable mapper and toner kit features the following:
- Eight numbered and color-coded cable identifiers (#1 White, #2 Red, #3 Black, #4 Blue, #5 Green, #6 Yellow, #7 Purple, #8 Brown)
- Built-in tone generator easily identifies opens and shorts
- Auto power off after 30 minutes in "Tone" mode
- Tests for opens and shorts
- Auto power off 12 seconds after pass/fail results
- Maximum cable length for testing is 4,000 feet
- Powered by two 3V CR2032 batteries
- Maximum DC cable resistance is 100 Ohms
- Live voltage detection
- Low battery warning light indicator
Details
Specifications
Includes Cable Mapper/Tester/Toner, 8 COAX Identifiers, 8 Network Cable Identifiers, 2 Data Patch Cords, Coax Patch Cord, Network Cable Remote, Rugged Nylon Case, 2 AA Batteries, and an Instruction Sheet
Display Backlit LCD
Max Cable Length 1000 ft (304.8 m)
Max DC Cable Resistance 100 Ohms
Batteries x2 AA
Dimensions 4.75" x 2.1" x 6.5" (12.1 cm x 5.3 cm x 16.5 cm)
Weight 0.93 lb (424 g)
UPC # 810053350874
| Includes | Cable Mapper/Tester/Toner, 8 COAX Identifiers, 8 Network Cable Identifiers, 2 Data Patch Cords, Coax Patch Cord, Network Cable Remote, Rugged Nylon Case, 2 AA Batteries, and an Instruction Sheet |
|---|---|
| Display | Backlit LCD |
| Max Cable Length | 1000 ft (304.8 m) |
| Max DC Cable Resistance | 100 Ohms |
| Batteries | x2 AA |
| Dimensions | 4.75" x 2.1" x 6.5" (12.1 cm x 5.3 cm x 16.5 cm) |
| Weight | 0.93 lb (424 g) |
| UPC # | 810053350874 |
