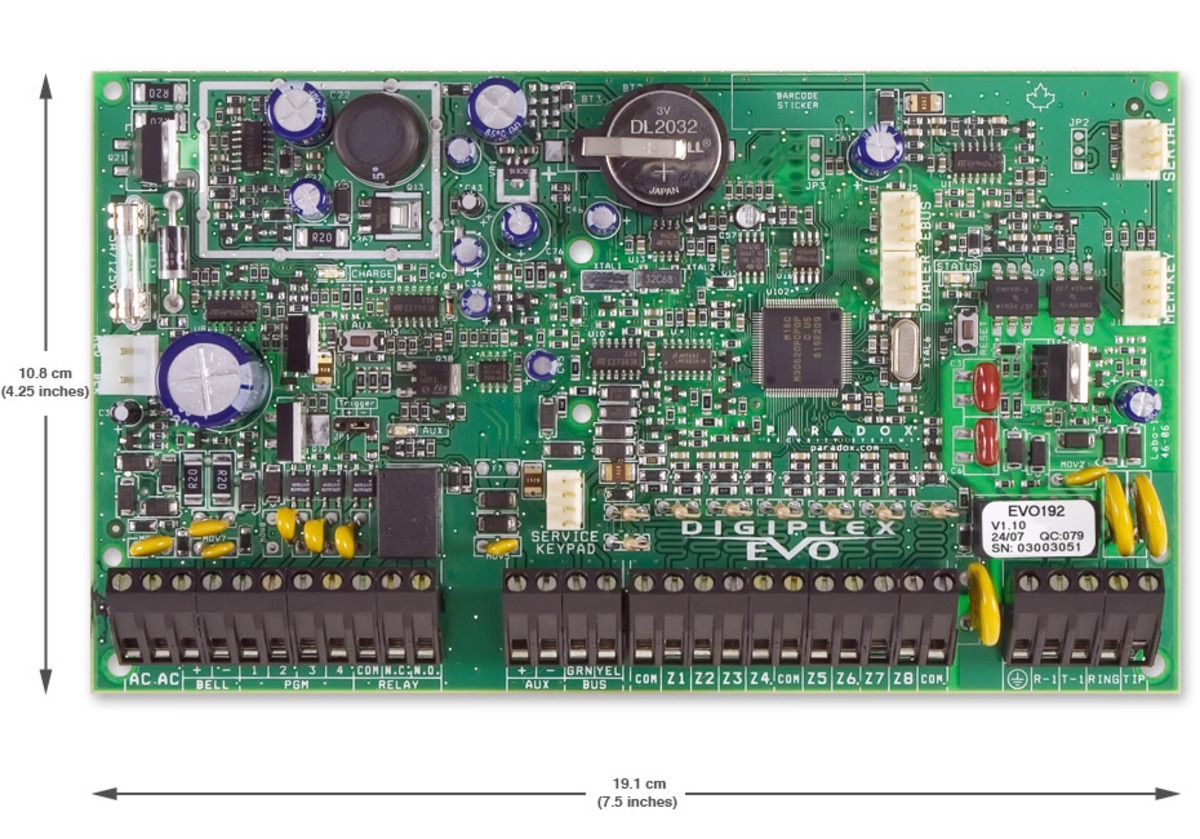

EVO192


192-Zone Control Panel

Features:

  • 8 on-board zones (16 w/ zone doubling)
  • Built-in access control features
  • Supports PCS Series, IP Module (IP150) and Voice Module (VDMP3)
  • In-field firmware upgrade via 307USBBabyware and WinLoad
  • Selectable input resistors for EOL and Tamper
  • Compatible with NEware V4.0 or higher
  • Automatic Daylight Savings Time feature
  • PGM1 can be used as a 2-wire smoke input
  • Program remote controls using the master or installer codes
  • Built-in real-time clock backup battery
  • 1.7A switching power supply
  • 1 supervised bell output, auxiliary output and telephone line
  • Patented 2 opto coupler dialer circuit - the most reliable dialer in the industry (US Patents 5751803, RE39406)
  • Push button software reset (reset to default values and restart)
  • Push button to activate or deactivate the Auxiliary output
  • Fits in a 28cm x 28cm x 7.6cm (11in x 11in x 3in) metal box
  • The EVO series share the same programming for easy panel substitution
  • EN 50131 grade 3
SKU EVO192
QuantityPrice
1 – 1$112.46
1 +$95.00
(0)No Reviews yet

Details

FeatureEVO192
Maximum Zones192
PGMs32 (5 on board)
Multibus
User Codes999
Partitions8
Events Buffered3584
Expansion Modules254
Remote Controls999 (w/RTX3)
