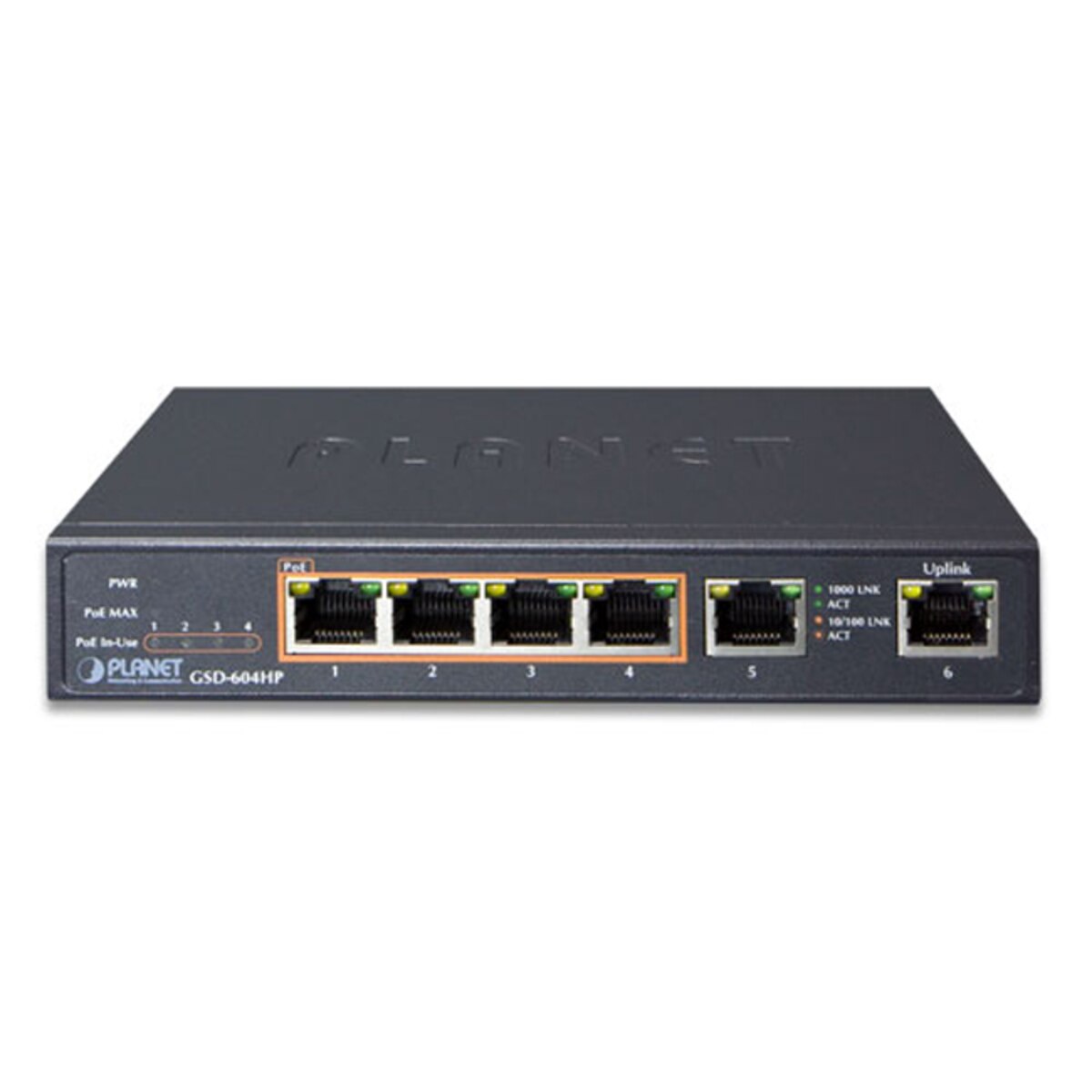

4 Port Gigabit POE Switch + 2 Uplinks
4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch
RJ45 Interface
- 6 10/100/1000BASE-T RJ45 ports with 4-port IEEE 802.3af/at injector function
Power over Ethernet
- Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
- Up to 4 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 30 watts for each PoE port
- Each port supports 54V DC power to PoE powered device
- 65-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m in standard mode and 250m in extend mode
Switching
- Hardware-based 10/100/1000Mbps, auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- Integrates address look-up engine, supporting 4K absolute MAC addresses
- Automatic address learning and address aging
- Supports port-based VLAN
Hardware
- LED indicators for PoE ready/activity and LINK/ACT
- One 54V DC power jack
- Fanless design
Details
| Hardware Specifications | |
|---|---|
| Network Connector | 6 10/100/1000BASE-T RJ45 auto MDI/MDIX ports |
| PoE Inject Port | 4 ports with 802.3at/af PoE injector function (Ports1 to 4) |
| LED Display | System: Power (Orange) Per PoE port: PoE (Orange, port 1 to port 4) Ethernet port: LNK(Green) |
| Thermal Fan | Fanless design |
| Switch Architecture | Store and Forward |
| MAC Address Table | 4K MAC address table with auto learning function |
| Switch Fabric | 12Gbps |
| Switch Throughput | 8.92Mpps @64 bytes |
| Jumbo Packet | 9K bytes |
| Flow Control | Back pressure for half duplex. IEEE 802.3x pause frame for full duplex |
| Power Requirements | 54V DC, 1.3A |
| ESD Protection | 6KV DC |
| Power Consumption | Max. 66.69 watts, 227.5 BTU |
| Dimensions (W x D x H) | 168 x 93 x 32mm |
| Weight | 374g |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Output | Per Port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per Port 54V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| PoE Power Budget | 65 watts |
| Standard Conformance | |
| EMI Safety | FCC Part 15 Class A, CE |
| Standard Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating Environment | 0 ~ 50 degrees C |
| Storage Environment | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
