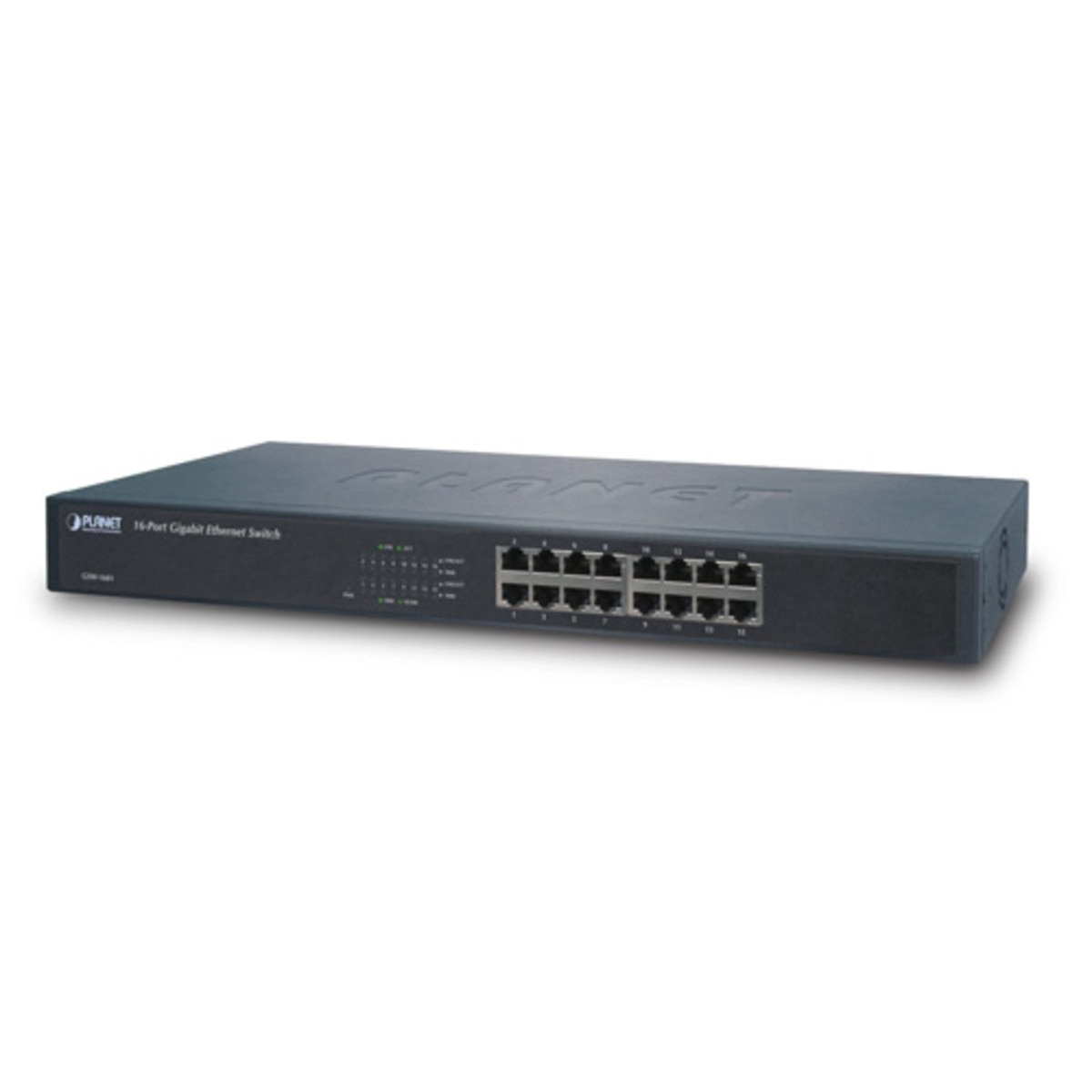

16-Port Gigabit Ethernet Switch

16-Port 10/100/1000BASE-T Gigabit Ethernet Switch

Physical Port

  • 16 10/100/1000BASE-T Gigabit Ethernet ports
  • Supports auto MDI/MDI-X function


Layer 2 Features

  • Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • Integrated address look-up engine, supporting 8K absolute MAC addresses
  • 9K jumbo packet support
  • Power saving ability for Green networking
  • IEEE 802.1Q VLAN packet transparency support
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Hardware-based 10/100BASE-TX, half/full duplex and 1000BASE-T full duplex mode, flow control and auto-negotiation
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol


Hardware Features

  • 100~240V AC, 0.16A, 50~60Hz universal power input
  • DIP switch for standard/flow control off/VLAN/Extend mode selection
  • FCC, CE class A compliant
SKU GSW-1601
(0)No Reviews yet


  • Hardware Specifications
    Hardware Version9
    10/100/1000BASE-T MDI/MDIX Ports16
    Throughput (packet per second)23.8Mpps
    Switch Fabric32Gbps
    Power Consumption/Dissipation9.4 watts/32 BTU
    Power Requirements100~240V AC, 0.16A, 50-60Hz
    Dimensions (W x D x H)440 x 208 x 44mm, 1U height
    Switch Processing SchemeStore-and-Forward
    Address Table8K entries
    Jumbo Packet Size9K
    Flow ControlBack pressure for half duplex
    IEEE 802.3x Pause Frame for full duplex
    DIP SwitchOperation mode selection:
    Flow control off
    Standards Conformance
    Regulatory ComplianceFCC Part 15 Class A, CE
    Standards ComplianceIEEE 802.3 (Ethernet)
    IEEE 802.3u (Fast Ethernet)
    IEEE 802.3ab (Gigabit Ethernet)
    IEEE 802.3x (Full-Duplex Flow Control)
    IEEE 802.3az Energy Efficient Ethernet (EEE)
    OperatingOperating Temperature: 0~50 degrees C
    Relative Humidity: 5% to 95% (non-condensing)
    StorageTemperature: -10~70 degrees C
    Relative Humidity: 5% to 95% (non-condensing)
