K4

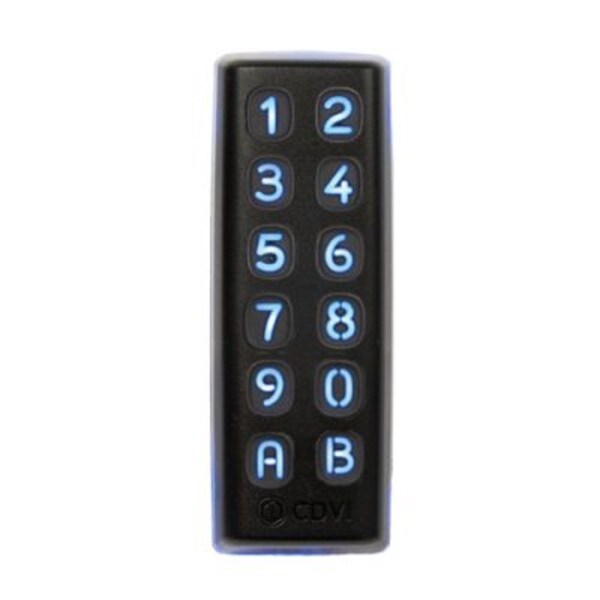

KRYPTO Bluetooth Mullion Keypad & Reader

CDVI’s KRYPTO K4 card reader facilitates high security!

This KRYPTO Bluetooth mullion keypad & reader is compatible with the ATRIUM BT mobile application and the KRYPTO Mobile-PASS. The K4 works with the secure protocol of CDVI, the encryption keys guarantee end-to-end encryption between the credential, the reader and the A22K door controller.

Technical Specifications:

• Touch sensitive keypad
• Fits a single gang box
• 4 to 8 digit code
• Compatible with ATRIUM A22K controller, ATRIUM BT App and
• the Krypto Mobile-PASS
• FULLY secure RS-485 connection
• Reads KRYPTO Mobile-PASS, 13.56 MHz Mifare Classic and DESFire EV1/EV2 credentials
• OSDP-2 compatible
• NFC & Bluetooth
• Up to 2” (5 cm) read range
• Power requirements: 12 VDC
• 1.9″ (L) x 5.5″ (H) x 1″ (D)
