L7-W

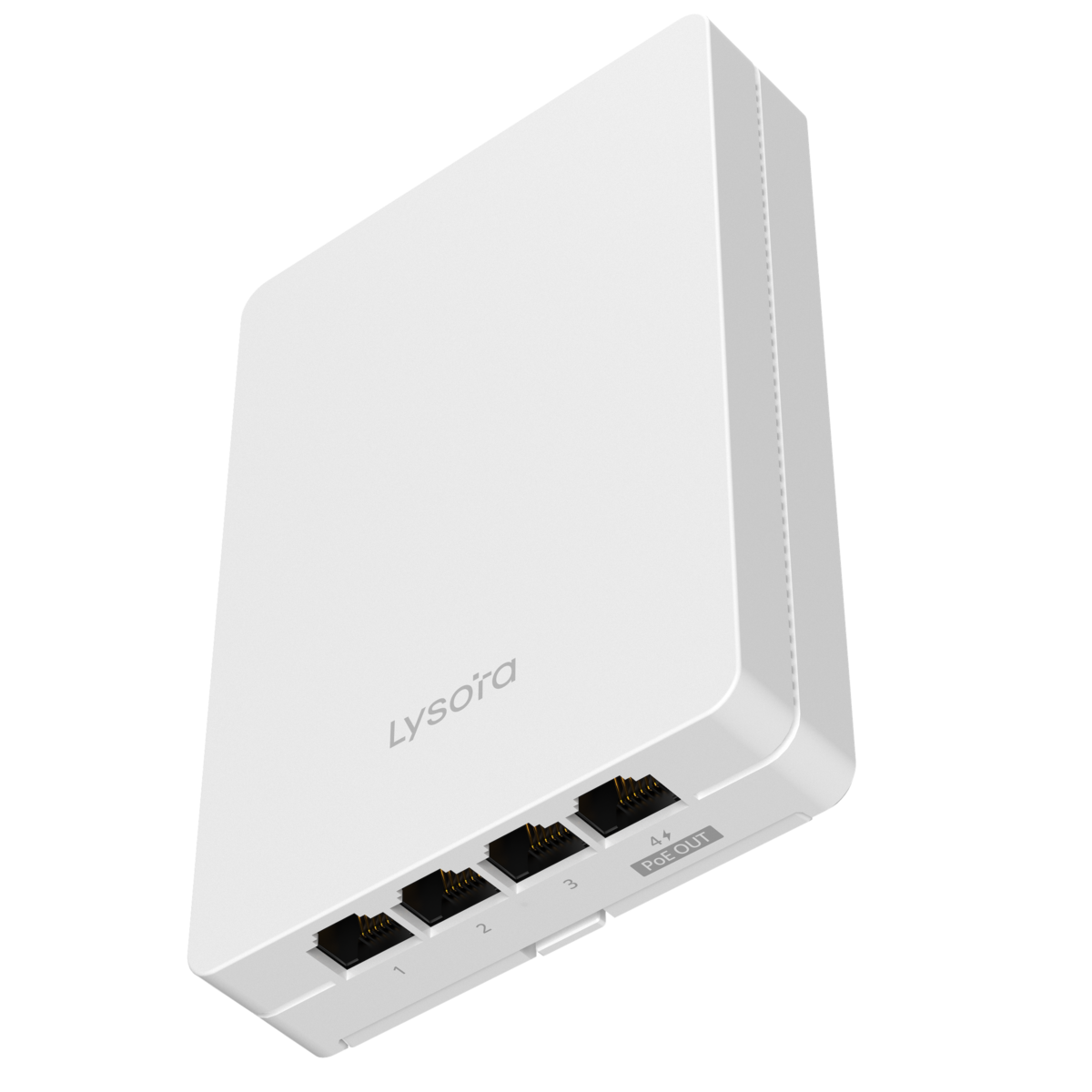

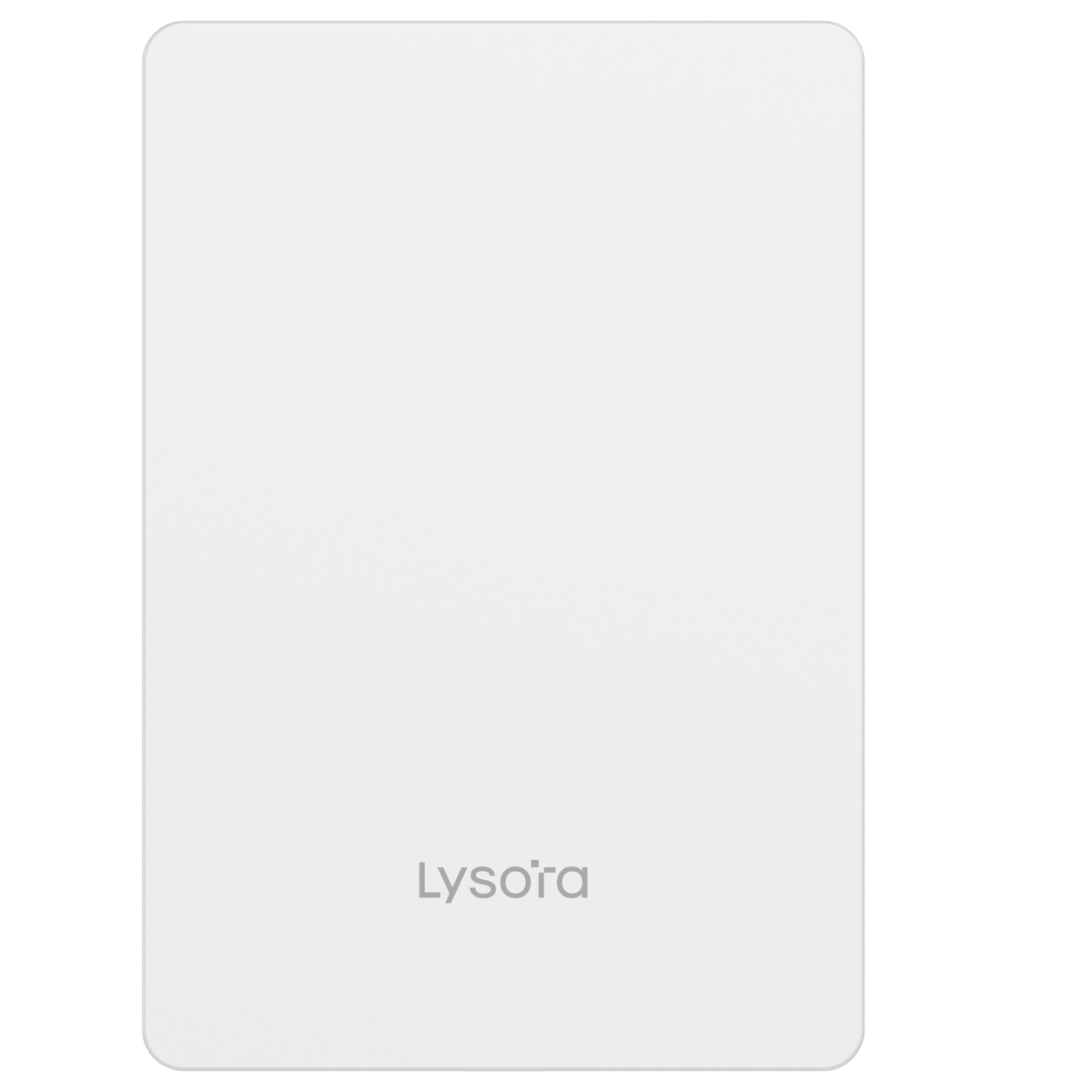

Wi-Fi 7 BE3600 Dual-Band Wall-Plate Access Point
- Wi-Fi 7 BE3600 dual-band wall-plate access point
- Up to 4 spatial streams

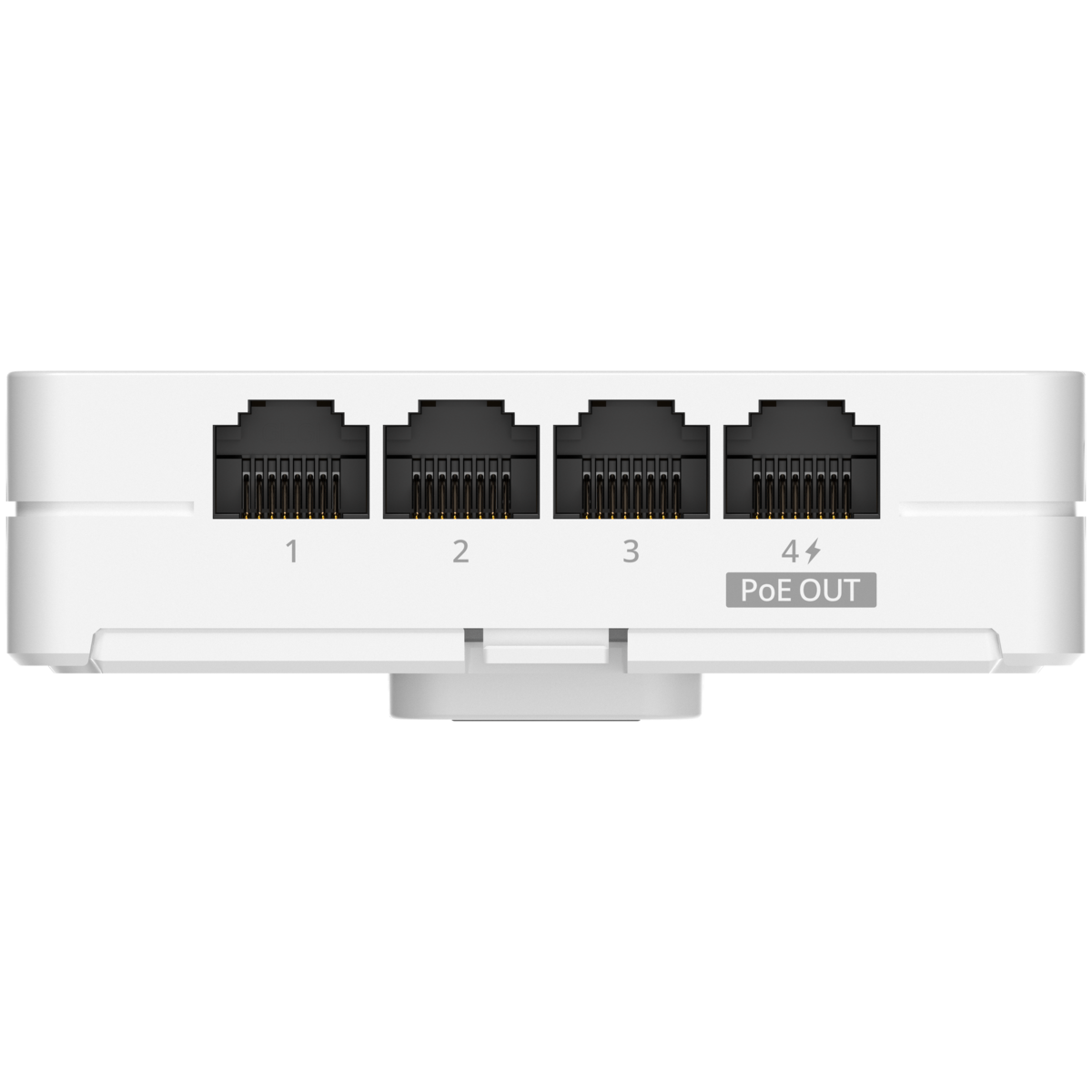

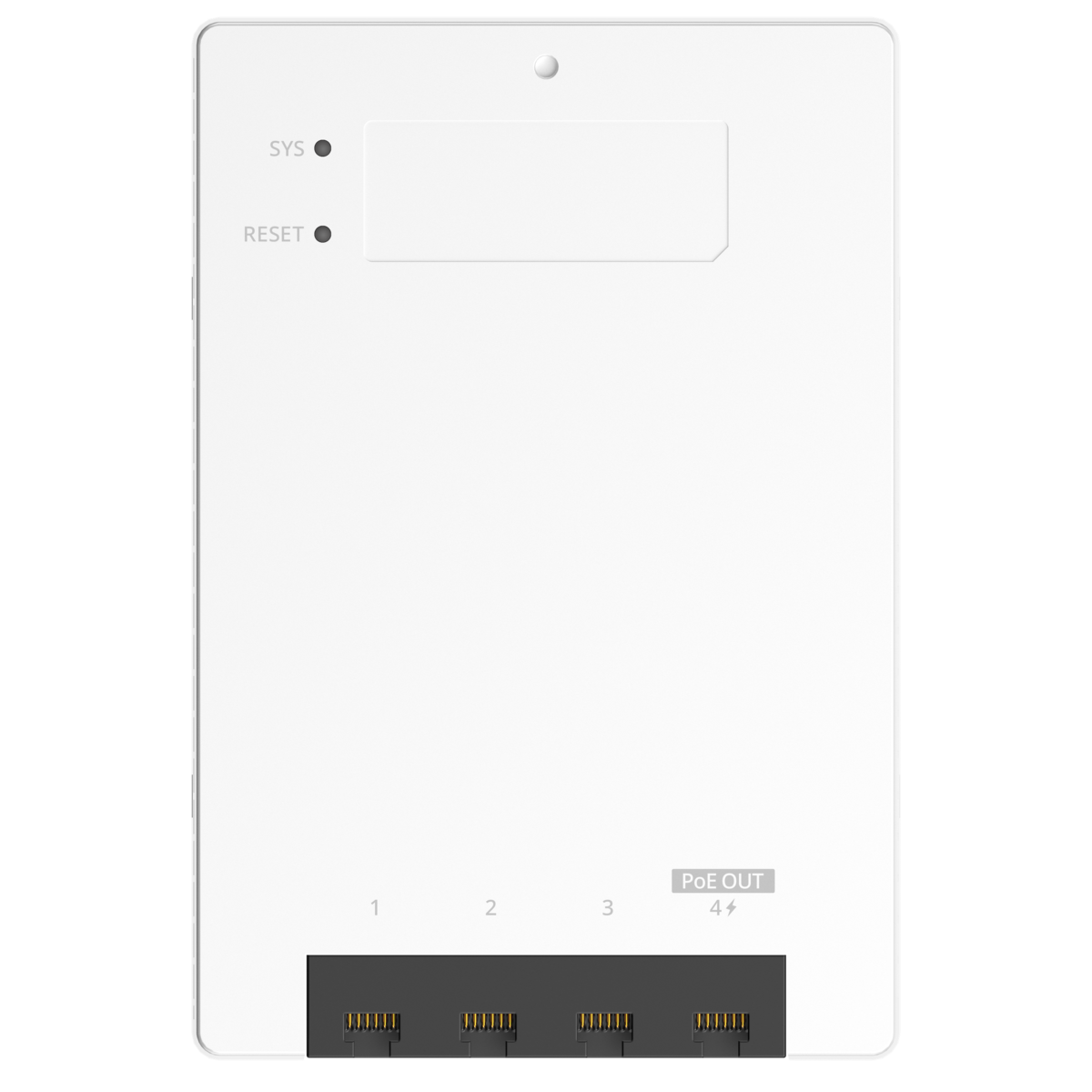

- 1 x 100/1000/2500BASE-T port and 4 x 10/100/1000BASE-T ports (with 1 port supporting PoE Out )
- Unified networking and management based on Lysora Cloud App
- Max power consumption < 15 W（when the PoE output of LAN 4 port is disabled)

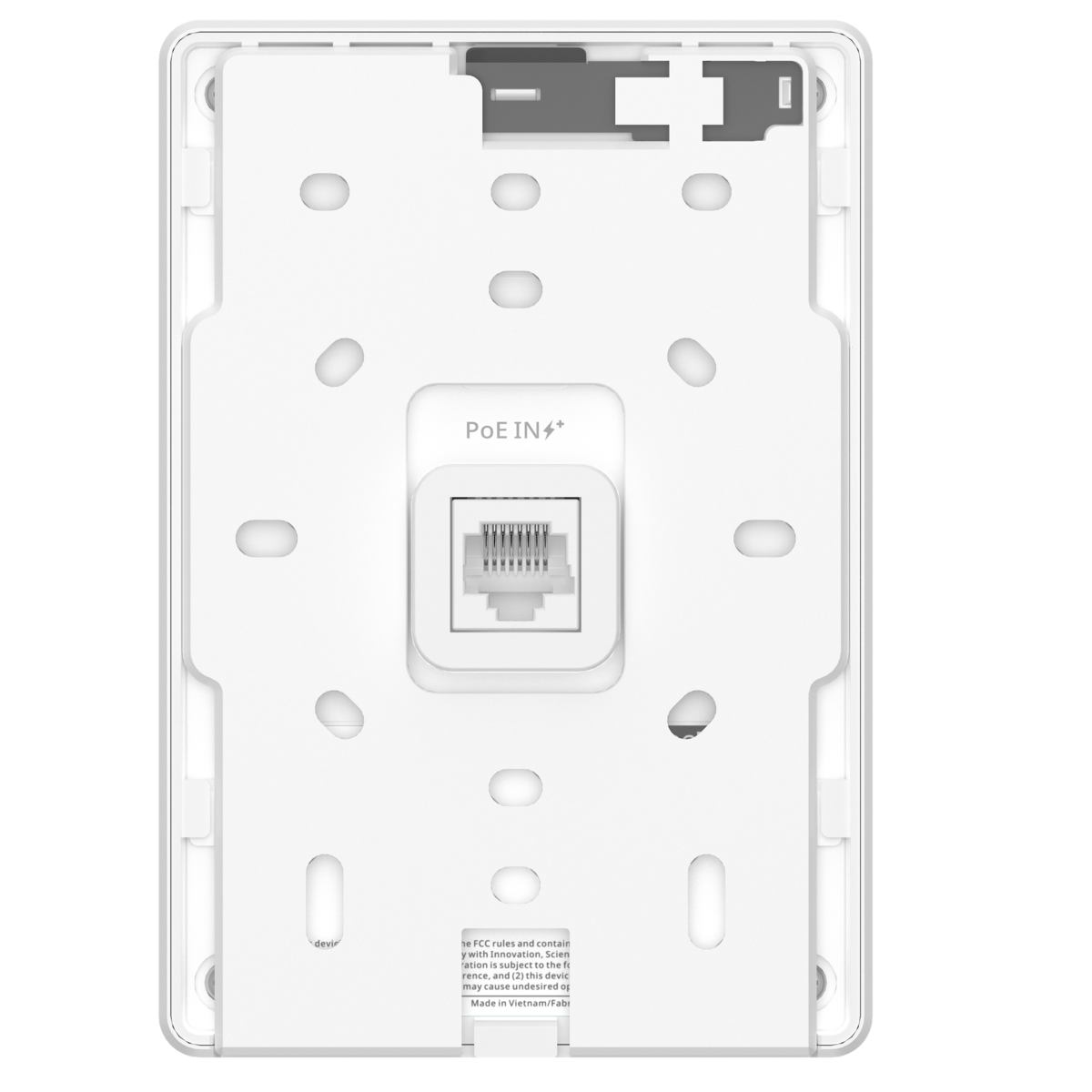

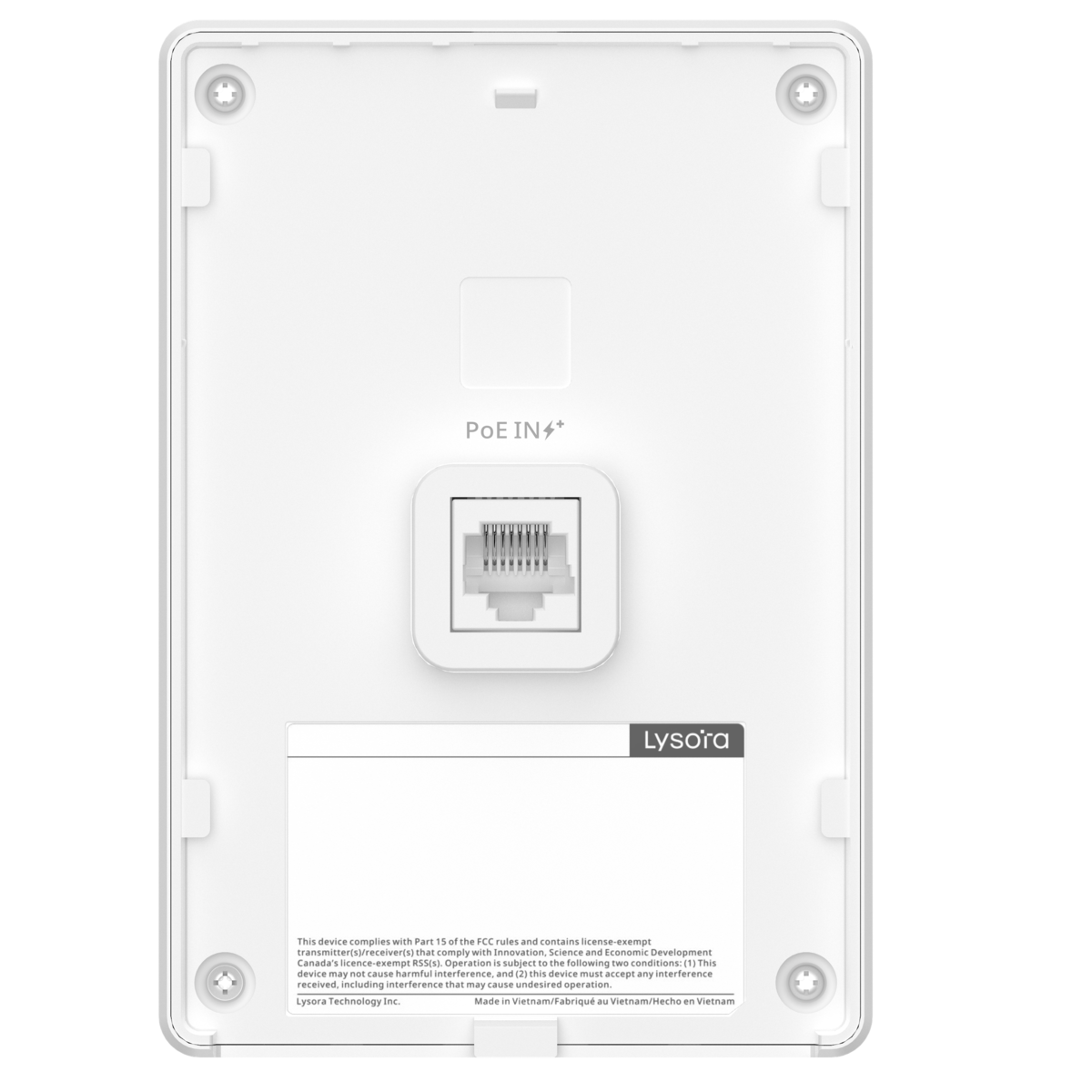

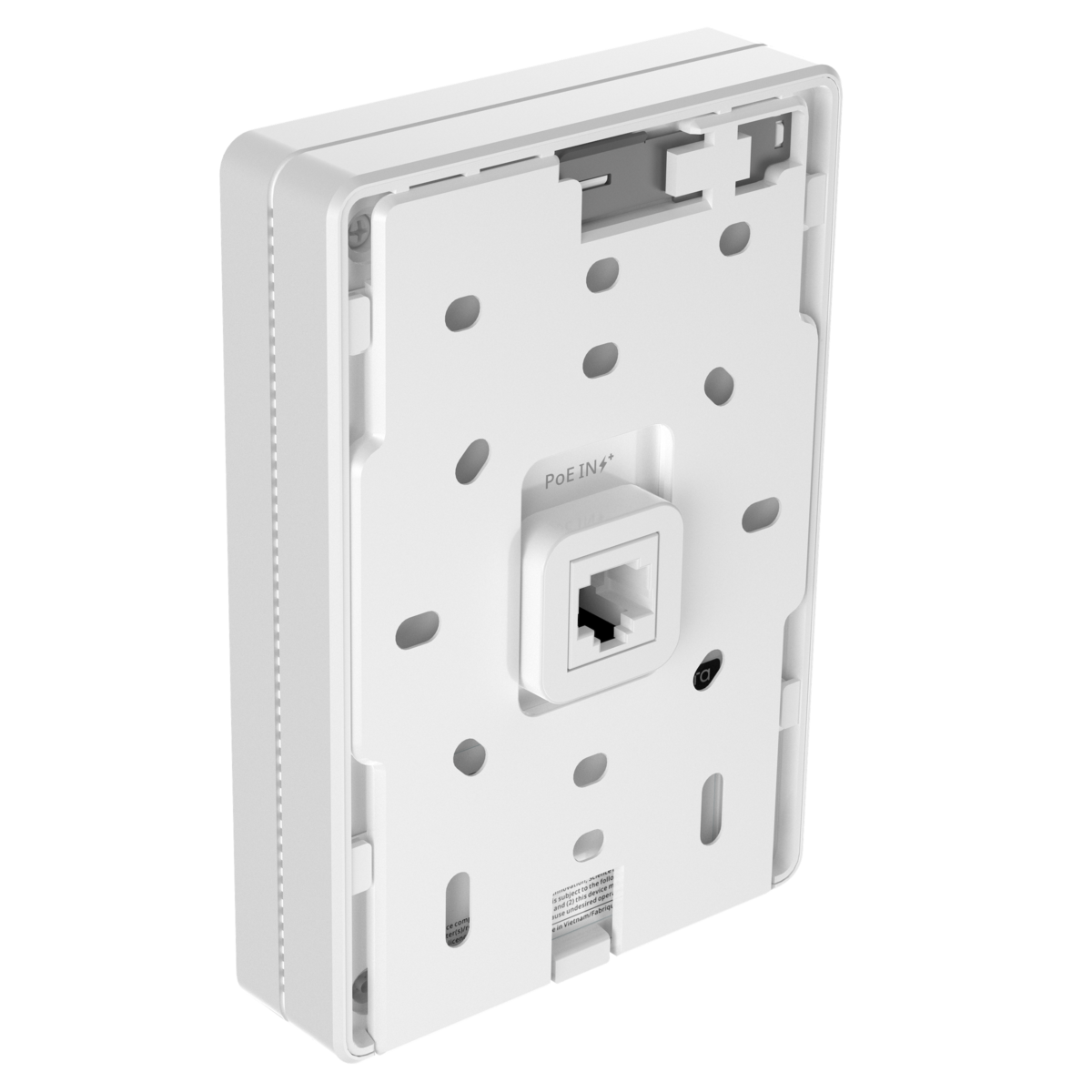

- 802.3af/at PoE In
Details
Dimensions
86 mm x 24 mm x 124 mm (3.39 in. x 0.94 in. x 4.88 in.)
Weight
≤ 0.27 kg (0.60 lbs.) (without packaging materials)
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Spatial Streams
4
Coverage Range
55 ㎡ (592.02 square ft.)
Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
Max.Client Count
64 (2.4 GHz)
511 (5 GHz)
511 (2.4 GHz and 5 GHz enabled)
511 (5 GHz)
511 (2.4 GHz and 5 GHz enabled)
Recommended number of associated wireless clients
● Support for IEEE 802.11ax and 160 MHz:
16 (2.4 GHz)
94 (5 GHz)
110 (2.4 GHz and 5 GHz enabled)
● Support for IEEE 802.11ax and 80 MHz:
16 (2.4 GHz)
64 (5 GHz)
80 (2.4 GHz and 5 GHz enabled)
● Support for IEEE 802.11ac:
8 (2.4 GHz)
32 (5 GHz)
40 (2.4 GHz and 5 GHz enabled)
16 (2.4 GHz)
94 (5 GHz)
110 (2.4 GHz and 5 GHz enabled)
● Support for IEEE 802.11ax and 80 MHz:
16 (2.4 GHz)
64 (5 GHz)
80 (2.4 GHz and 5 GHz enabled)
● Support for IEEE 802.11ac:
8 (2.4 GHz)
32 (5 GHz)
40 (2.4 GHz and 5 GHz enabled)

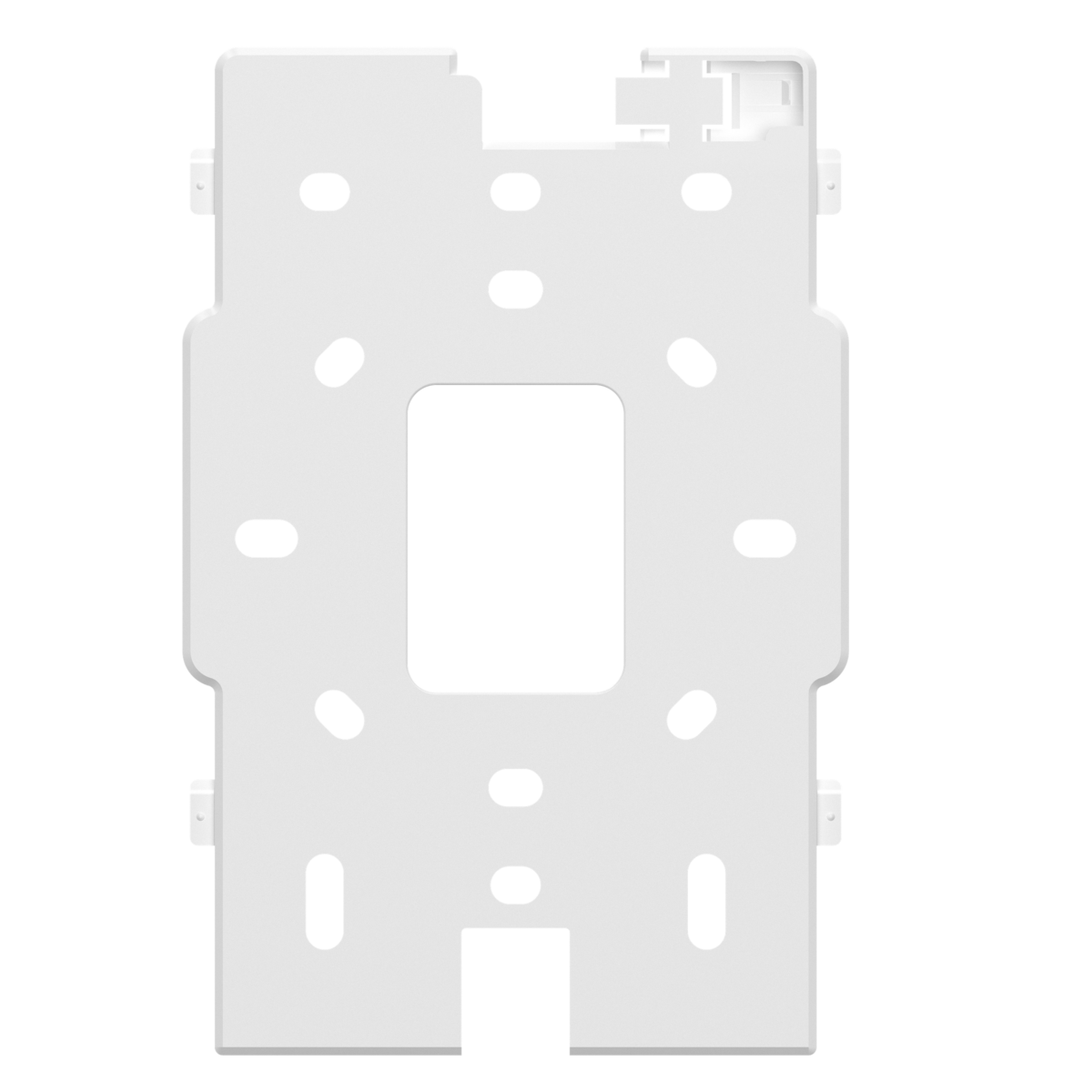

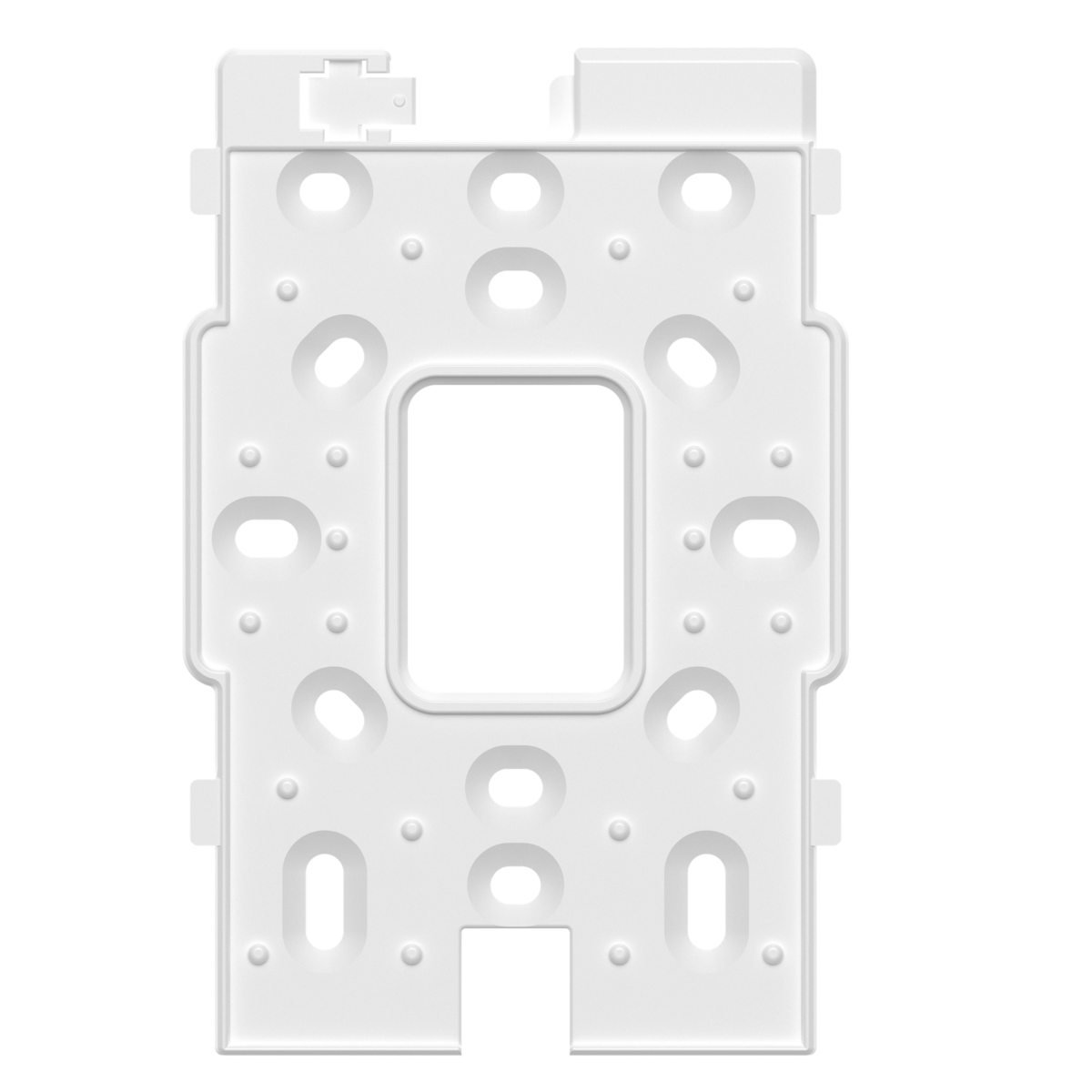

Mounting
Wall (Mounts Included)
