Details
Overview
Product dimensions
206.5 mm x 108.5 mm x 28 mm (8.13 in. x 4.27 in. x 1.1 in.)
Weight: 0.85 kg (with packaging), 0.41 kg (without packaging)

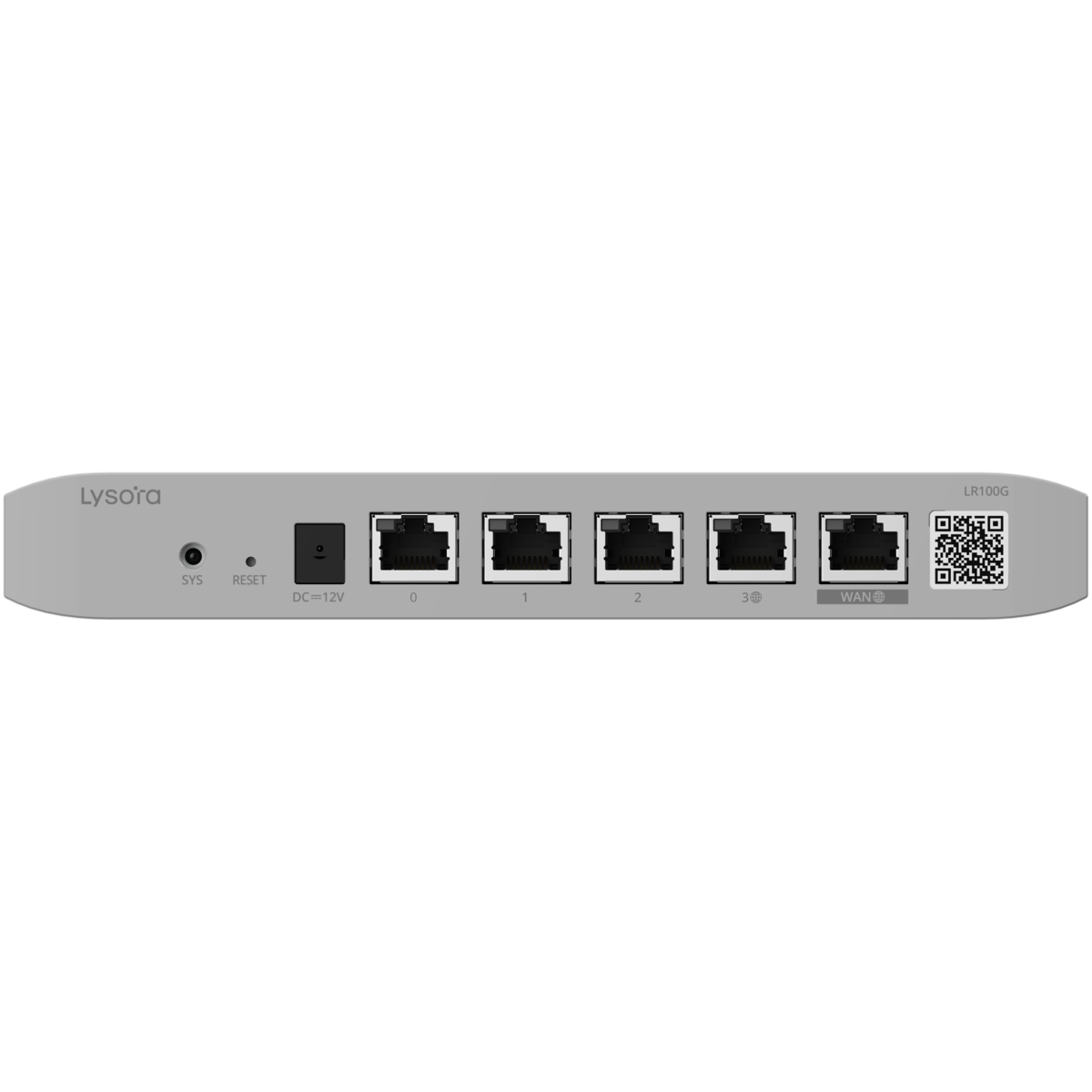

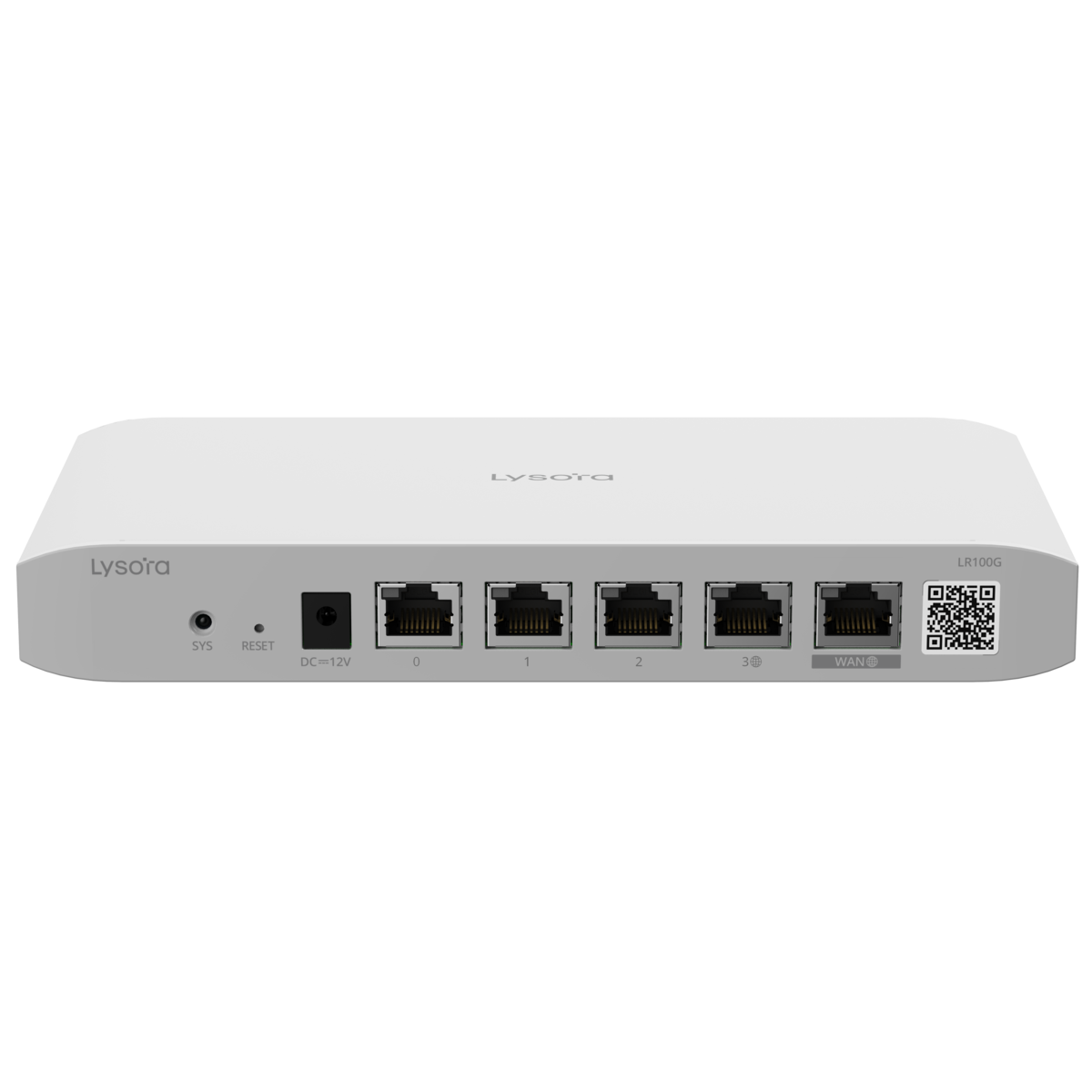

Port Specifications: RJ45 ports 5 (10/100/1000BASE-T)
LAN ports: Max 4 (3 fixed, 1 flexible)
WAN ports: Max 2 (1 fixed, 1 flexible)
Enclosure Material: Plastic

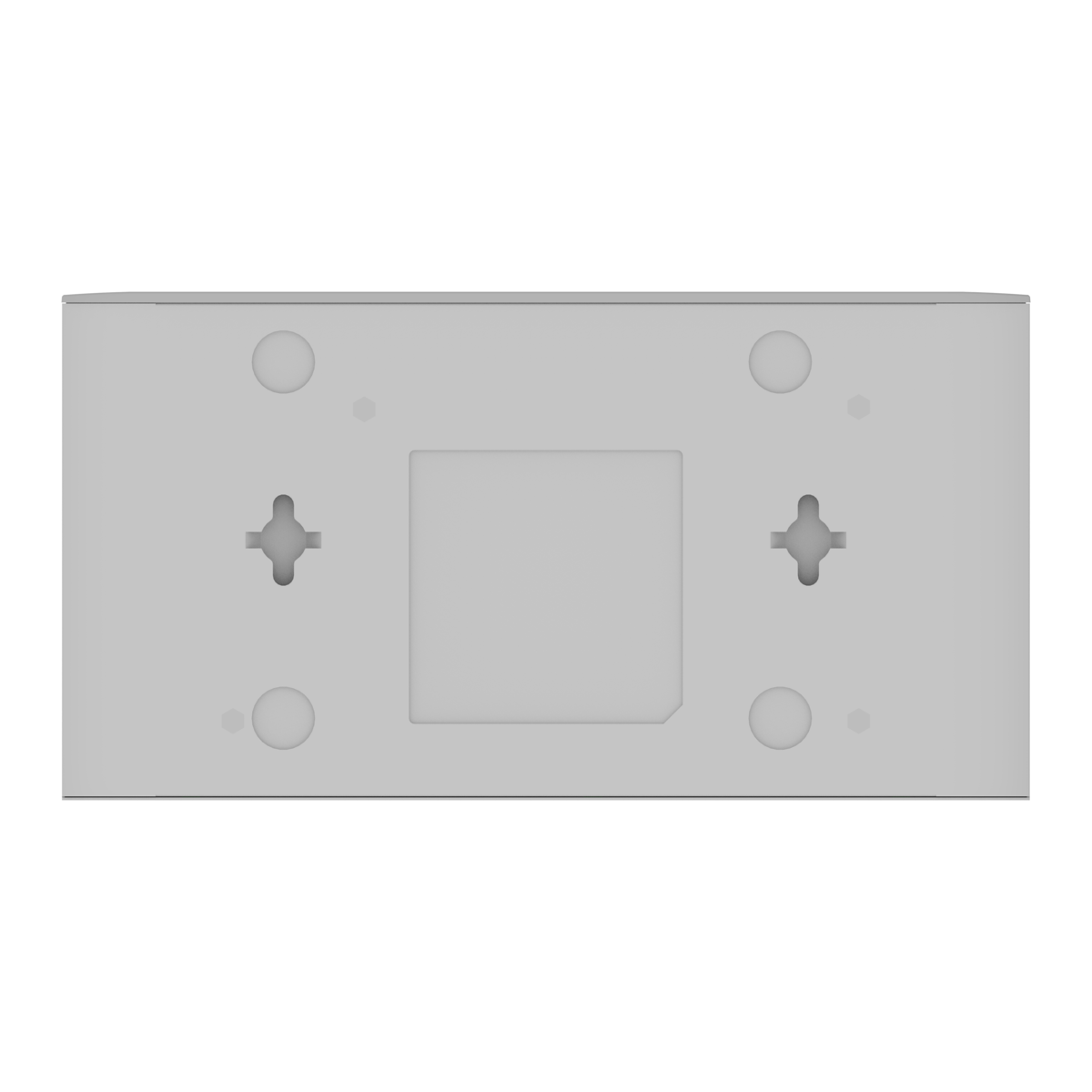

Mounting Type: Desktop, Wall-mounted
Warranty: 3 years
Hardware
System Specifications CPU Dual-core, 880 MHz per core
Memory: 32 MB Flash, 128 MB RAM
LEDs: 1 System, 5 Ethernet port LEDs
Buttons: 1 Reset
Performance: Concurrent sessions
12,000 max, 100 recommended
Throughput: 1000 Mbps (Turbo), 600 Mbps (Normal)
Power Input: 100-240V AC, 50-60 Hz
Output: 12V DC, 1A max
Consumption: 5W max
Environment: Operating temp 0°C to 40°C

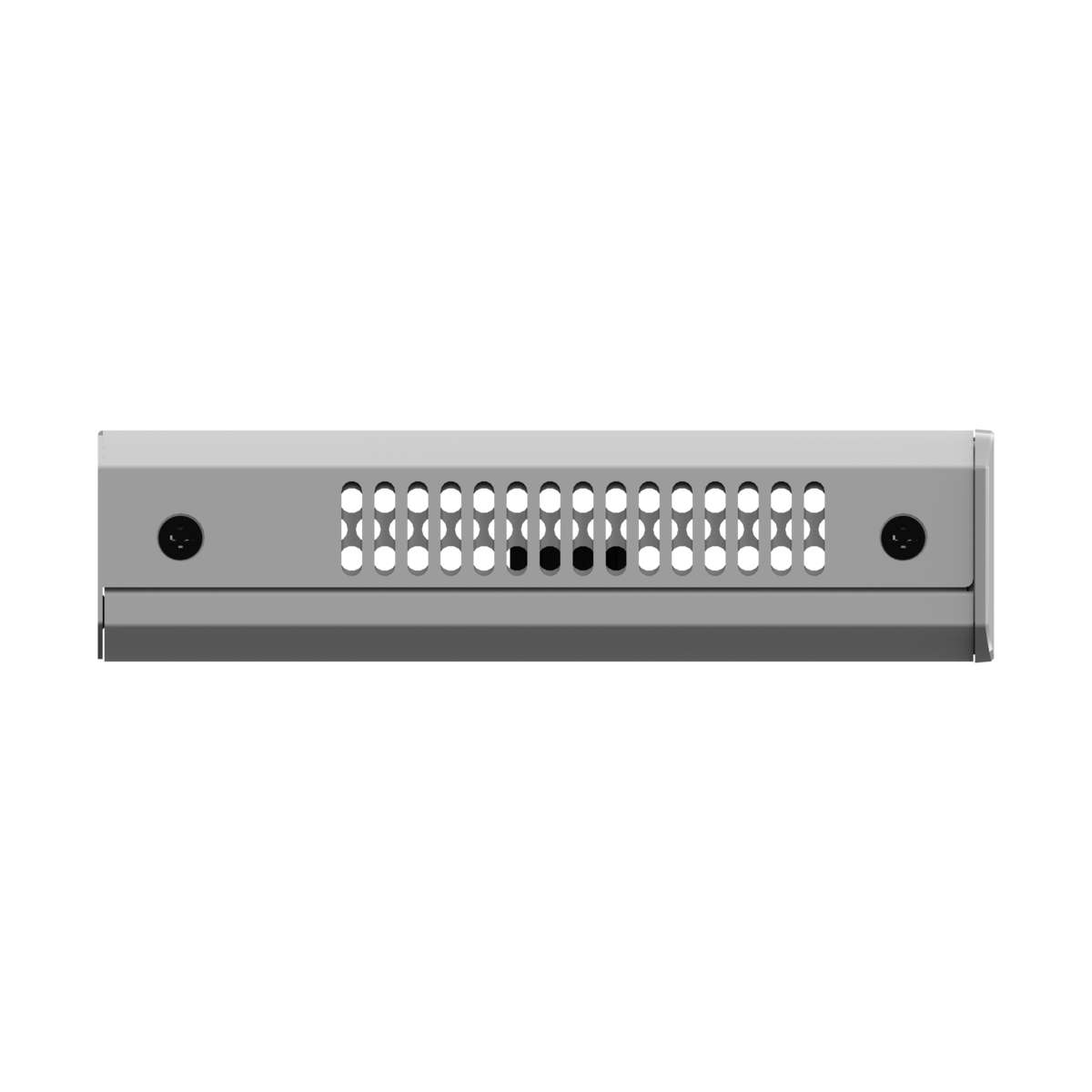

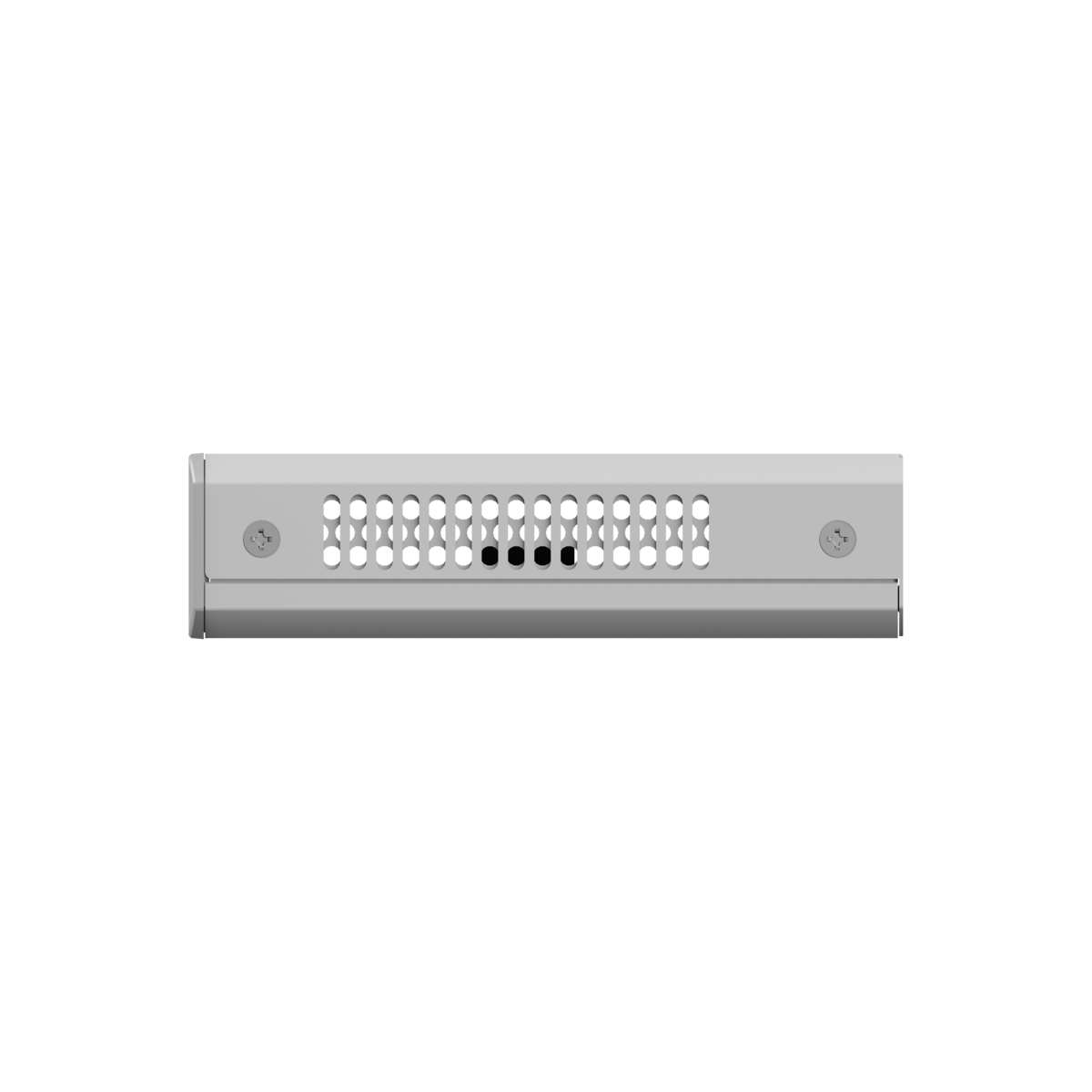

Fan, Fanless, natural cooling
Software
Basic Configurations
Modes AC, Routing
Internet access: PPPoE, DHCP, Static IP
Managed devices: 128 max
Routing Static routes
IPv4/IPv6 (100 each)
OSPF
Yes, 2 instances
Security Authentication
802.1X, PPPoE, SMS, QR, etc.
VPN, IPsec, WireGuard, L2TP, etc.
Management
Web/Cloud, Yes
Monitoring Syslog, SNMP, RLOG
Compliance
Certifications
FCC, IC, cTUVus, NDAA compliant
Package Contents
Device 1
Manuals: User Manual, Warranty Card Accessories
Power cord, rubber pads
