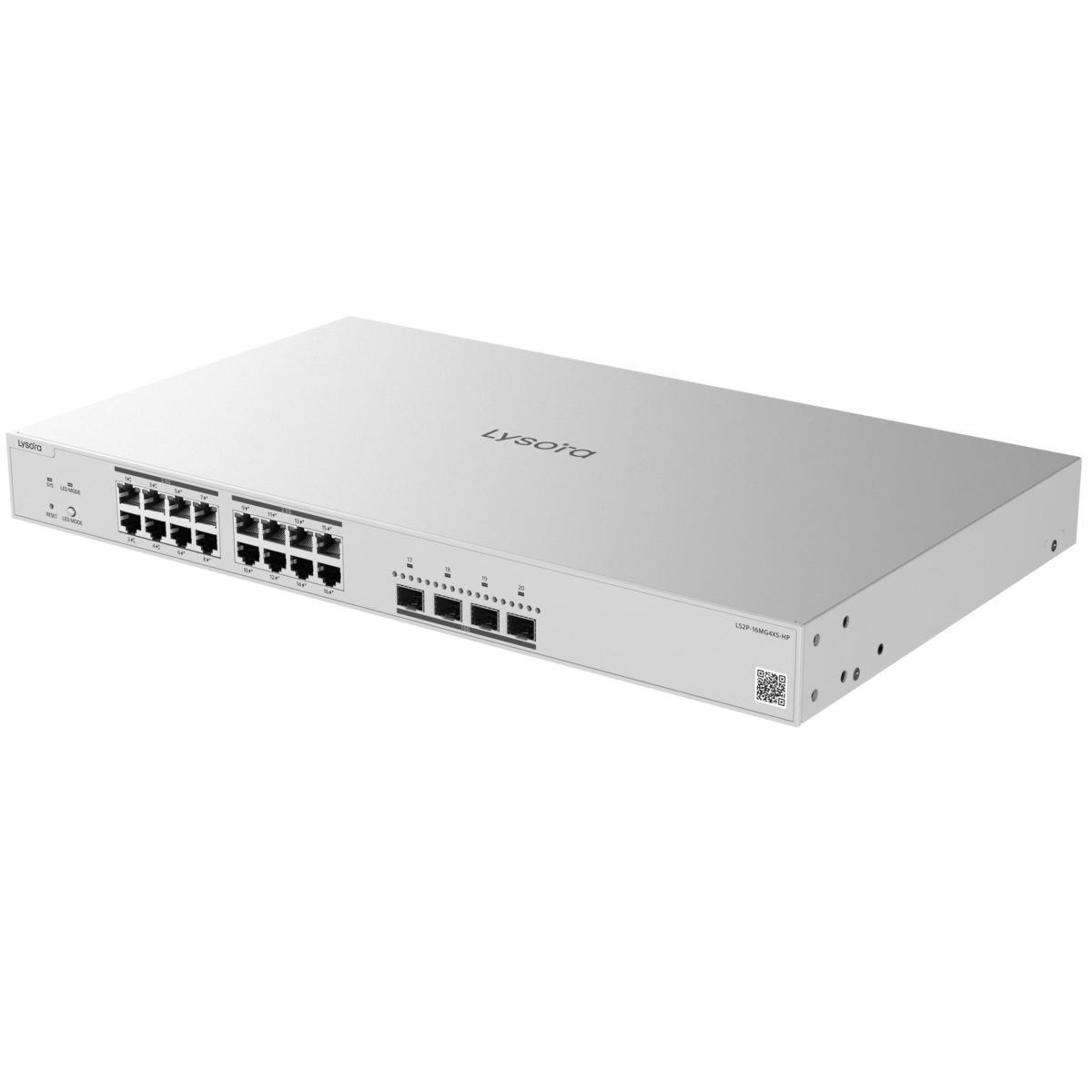

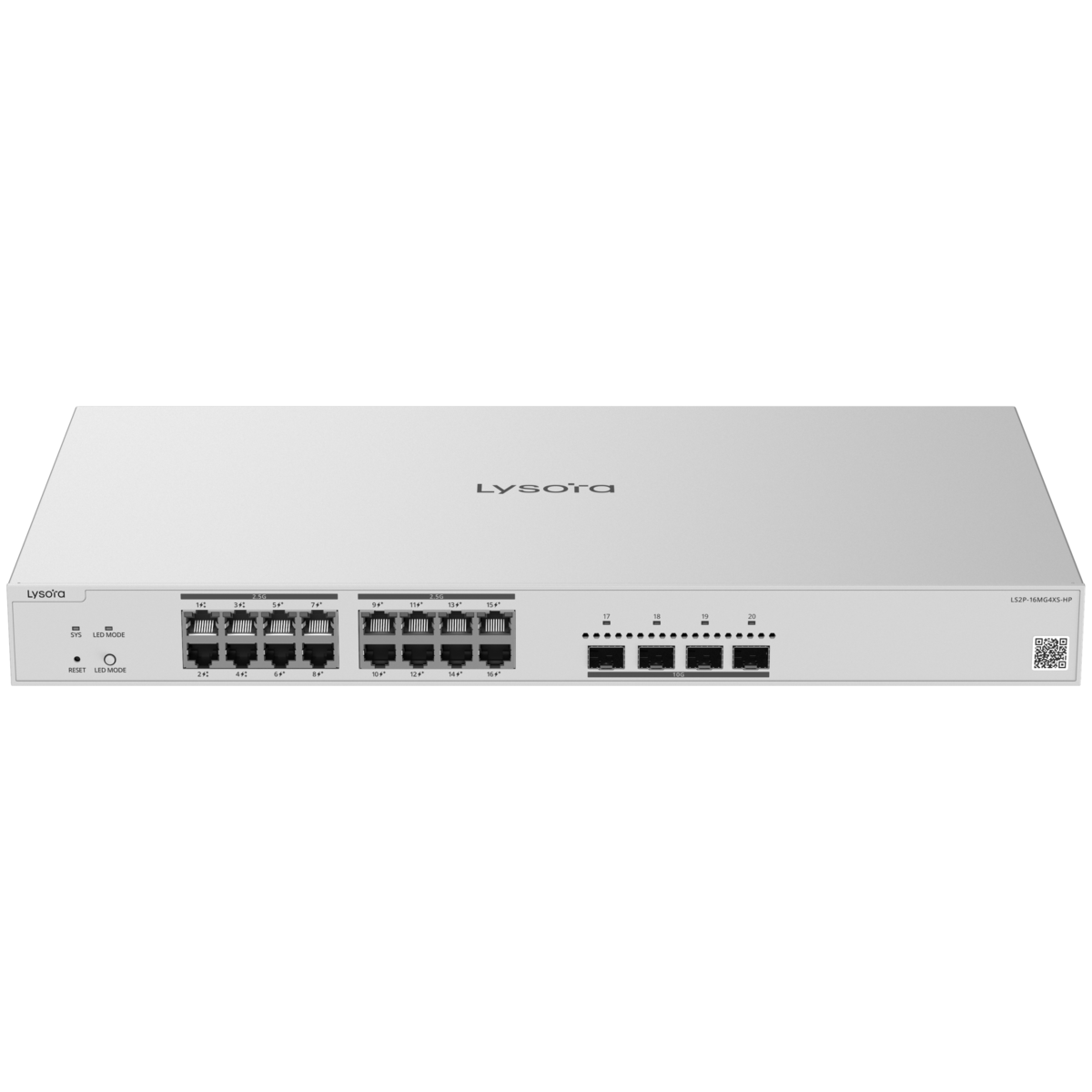

LS2P-16MG4XS-HP

16-Port (2.5G) Layer 2+ Managed PoE Switch with 370 W PoE Budget

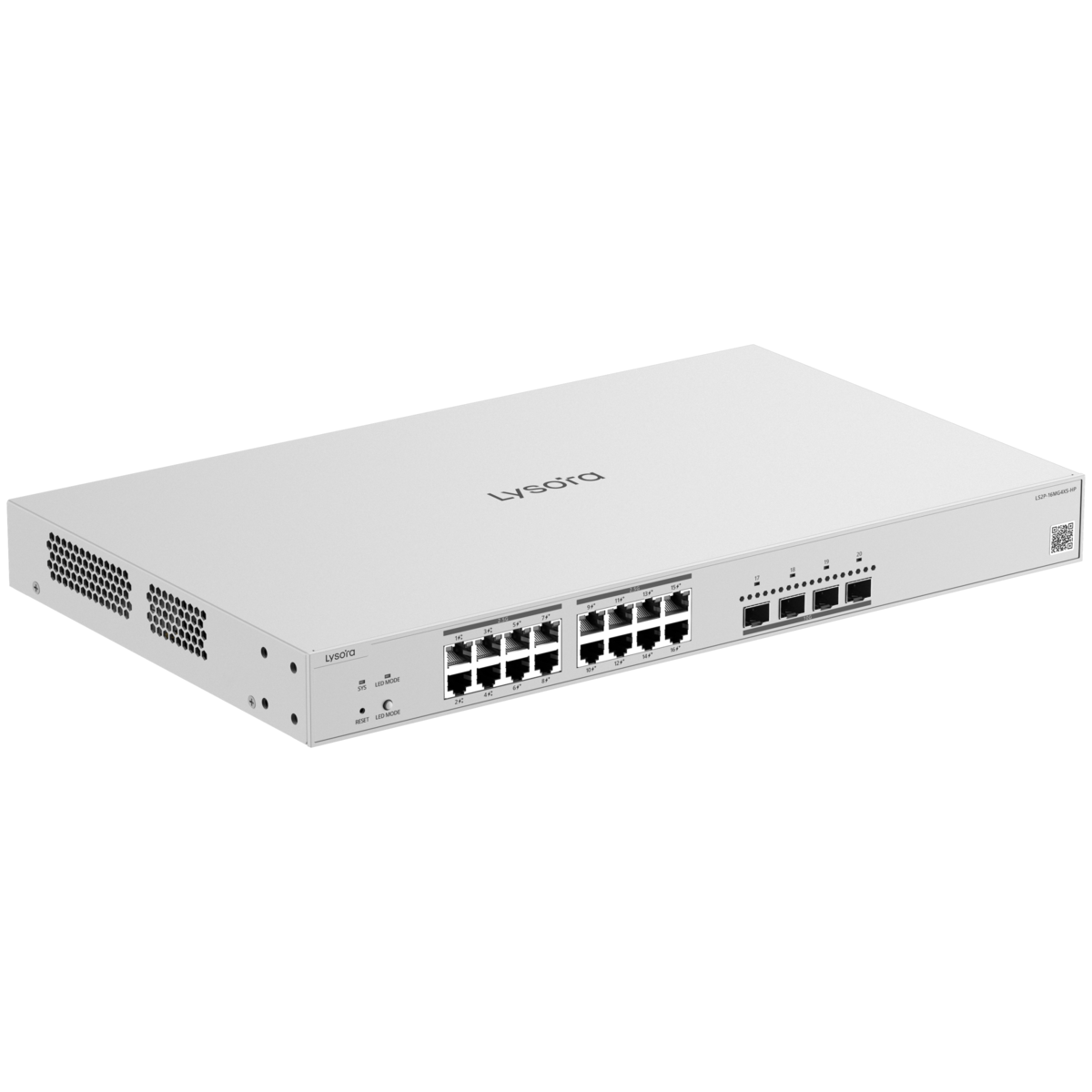

  • 16-Port Multi-Gigabit Layer 2 Managed Switch, 4 x SFP+ Uplink Ports

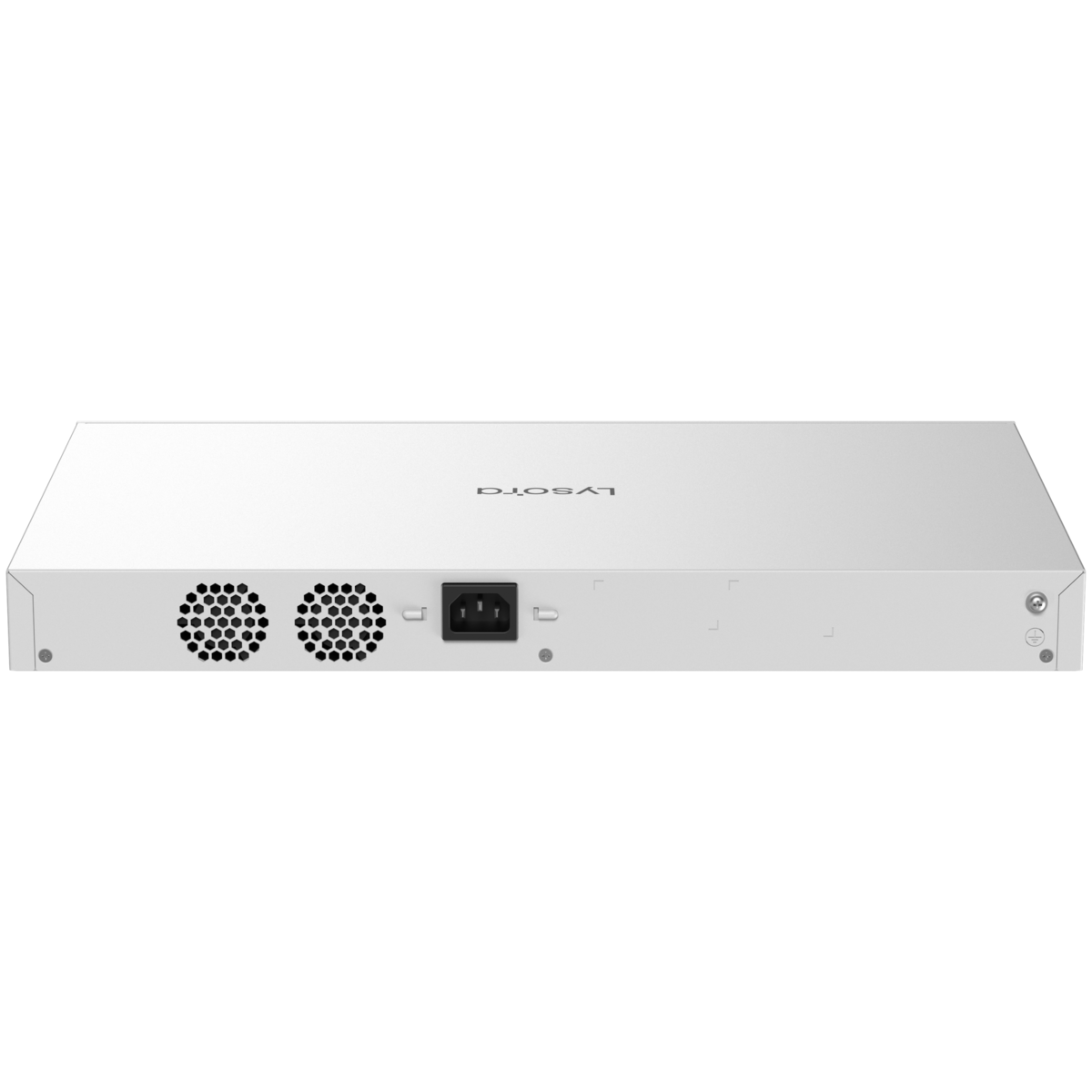

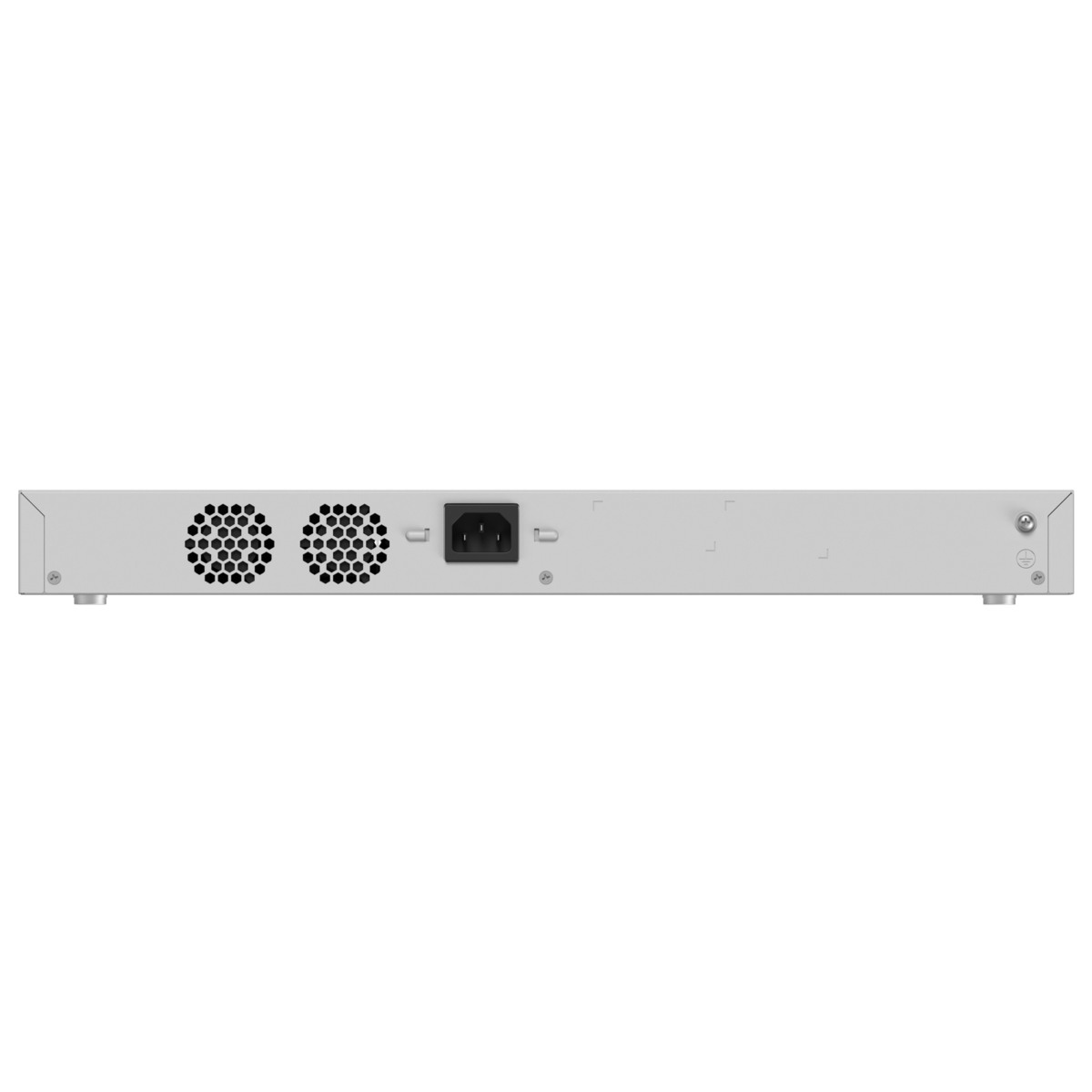

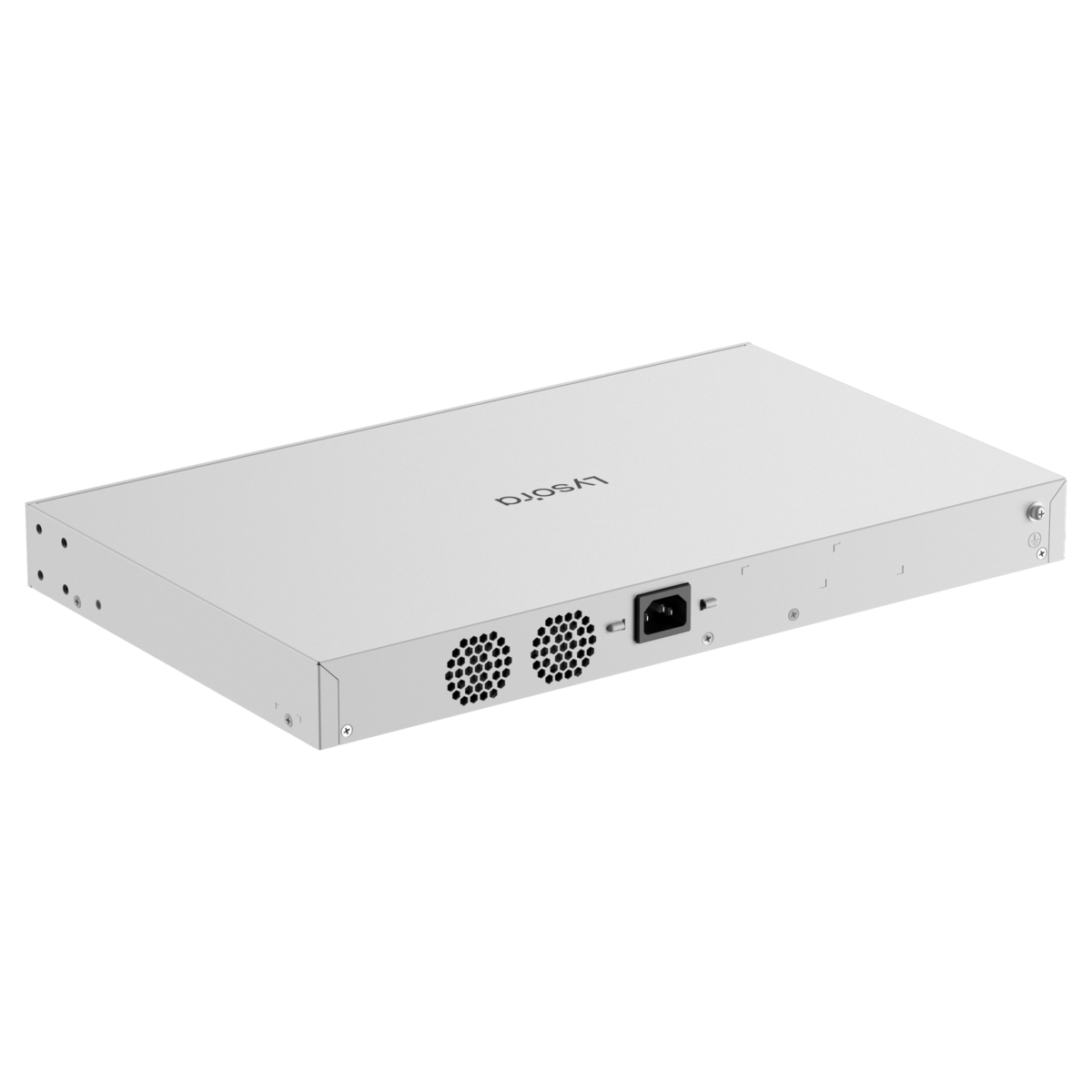

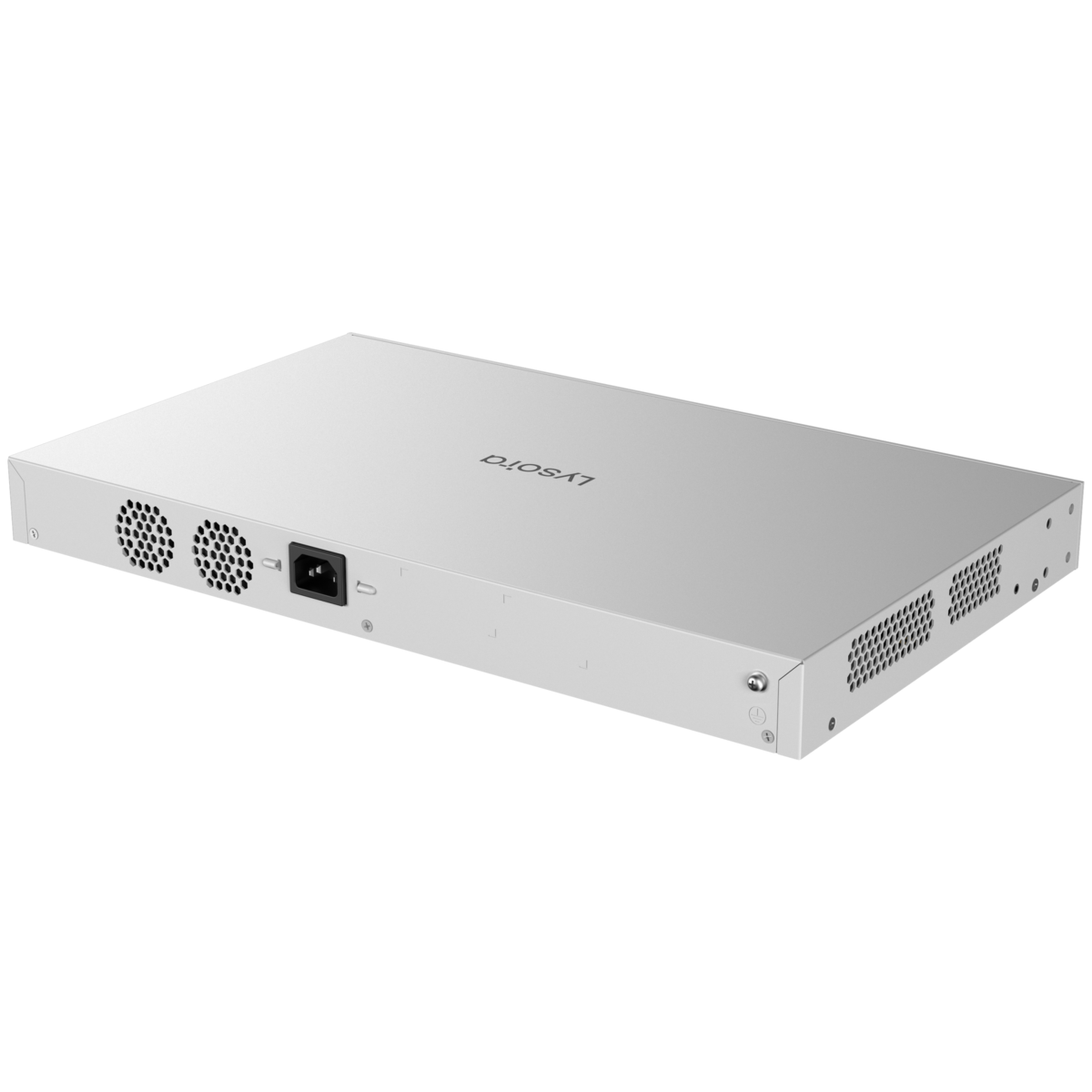

  • 1 x fixed power supply module (Rated voltage range: 100 V AC to 240 V AC)
  • Maximum power consumption
  • No PoE load: ＜40W
  • Full PoE load: ＜460W


SKU LS2P-16MG4XS-HP
(0)No Reviews yet
Back

Details

Dimensions
440 mm x 267.5 mm x 43.6 mm (17.32 in. x 10.53 in. x 1.72 in.)
Weight
5.24 kg (11.55 lbs) (7.61 lbs)(with packaging materials)
3.6 kg (7.94 lbs) (without packaging materials)

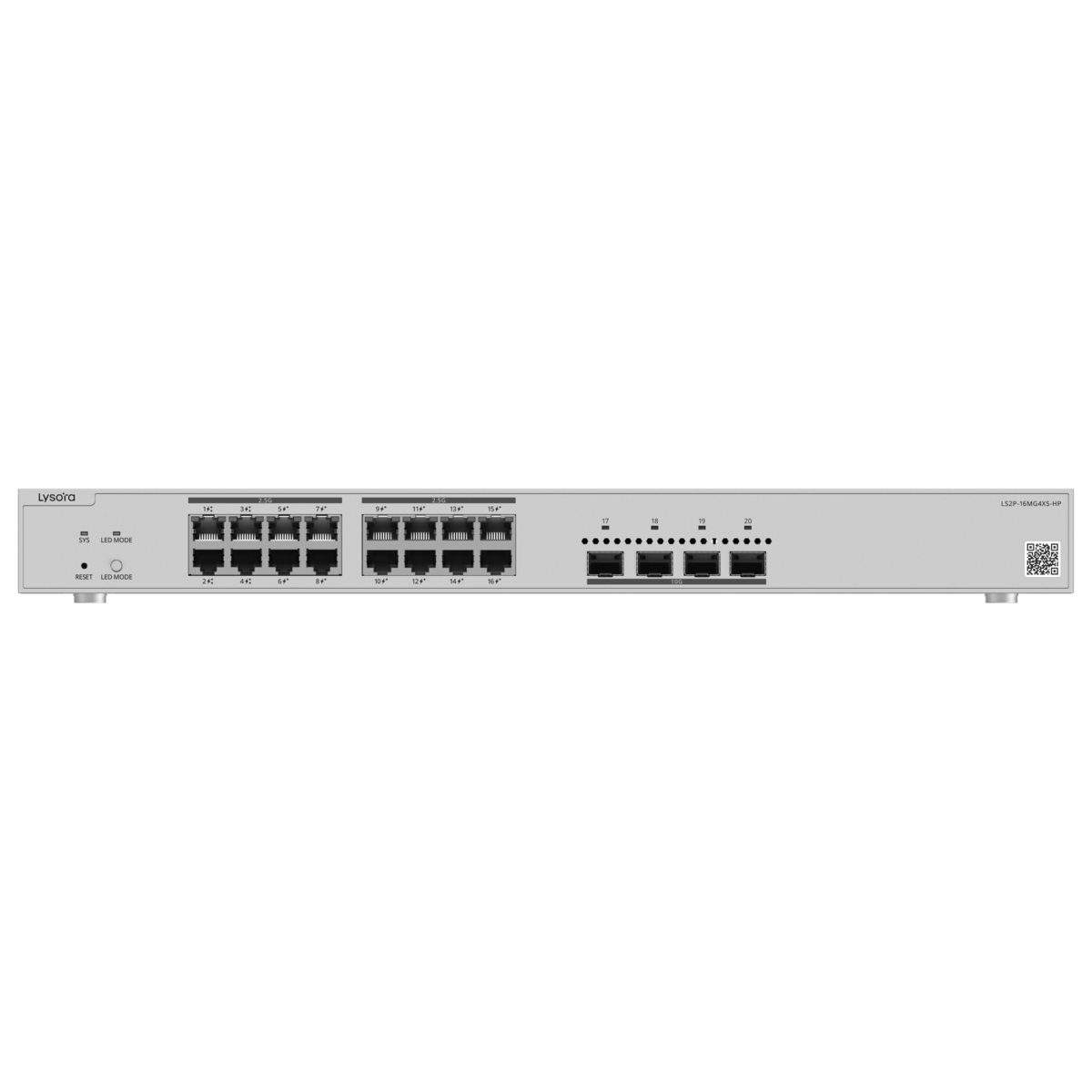

Port Specifications
Total number of RJ45 ports
16
Total number of optical ports
4
Number of 1GE combo ports
-
Number of 1GE SFP ports
-
Number of 10GE SFP+ ports
4
Number of 10/100BASE-T ports
-
Number of 10/100BASE-T ports
-
Number of 10/100/1000/2500BASE-T ports
16
Number of 100/1000/2.5G/5G/10GBASE-T ports
-
PoE Specifications
Number of PoE/PoE+ Out ports
12
Number of PoE/PoE+/PoE++ Out ports
4
PoE budget
370 W
PoE power pins
Ports 1–4: 1–2(-), 3– 6(+), 4–5(+), 7–8(-)
Ports 5–16: 1–2 (+), 3–6 (-)
Casing
Metal
Mounting
Rack/Desk
Warranty
3 years
