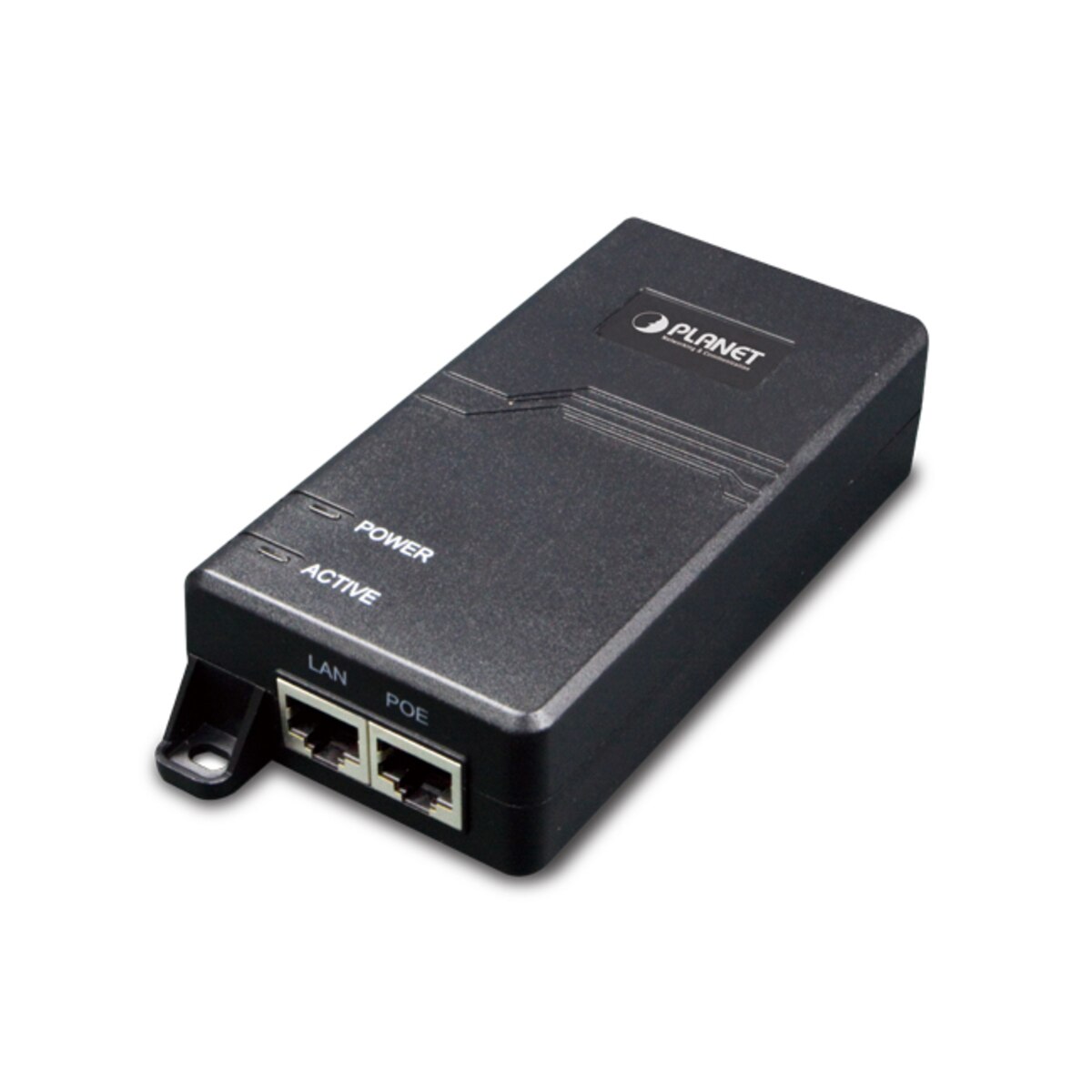

POE-163


IEEE 802.3at Gigabit High Power over Ethernet Injector (Mid-span)


Interface

  • 2-port RJ45 interfaces
  • - 1-port Data + Power output
  • - 1-port Data input
  • 1 AC 100-240V input power socket


Power over Ethernet

  • 1-port Gigabit High Power over Ethernet Mid-span PSE
  • IEEE 802.3at Power over Ethernet Plus compliant
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Supports PoE Power up to 30 watts for PoE port
  • Up to 1 IEEE 802.3at device powered
  • Provides DC 50-54V power over RJ45 Ethernet cable to device with Ethernet port
  • Auto-detection of PoE IEEE 802.3at/af equipment and devices that could be damaged by incorrect installation
  • Remote power feeding up to 100m


Hardware

  • All-in-one design with internal power supply
  • Compact-size plastic case
  • LED indicators for Power LED and Active LED (PoE ready-in-use)
SKU POE-163
(0)No Reviews yet
Back

Details

Hardware Specifications
Interface"Data" Input Port: 1 x RJ45 STP
"PoE (Data + Power)" Output Port: 1 x RJ45 STP
AC Input Power Socket: 1
LED IndicatorSystem: Power x 1 (Green)
PoE Port: Active, PoE ready-in-use x 1 (Green)
Network Cable10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100M (328ft)
100BASE-TX: 2-pair UTP Cat. 3, 4, 5, up to 100M (328ft)
1000BASE-T: 2-pair UTP Cat. 5, 5e, 6 up to 100M (328ft)
EIA/TIA-568 100-ohm STP (100m)
Data Rate10/100/1000Mbps
Dimensions (W x D x H)115 x 62.5 x 31 mm
Weight185g
Unit Output VoltageDC 50-54V, 0.6A
Power Requirements100-240V AC, 50/60Hz, 0.75A
Power Consumption30 watts max.
Number of Devices that can be powered1
Operating Temperature0 ~ 50 degrees C
Storage Temperature-10 ~ 70 degrees C
Operating Humidity5 ~ 95%, relative humidity, non-condensing
Storage Humidity5 ~ 95%, relative humidity, non-condensing
Power over Ethernet
PoE StandardIEEE 802.3at Power over Ethernet Plus/PSE
PoE Power OutputDC 50-54V/30 watts
PoE Power Supply TypeMid-span
Power Pin Assignment4/5(+), 7/8(-)
Standards Conformance
Standards ComplianceIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at High Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Regulatory ComplianceFCC Part 15 Class B, CE
