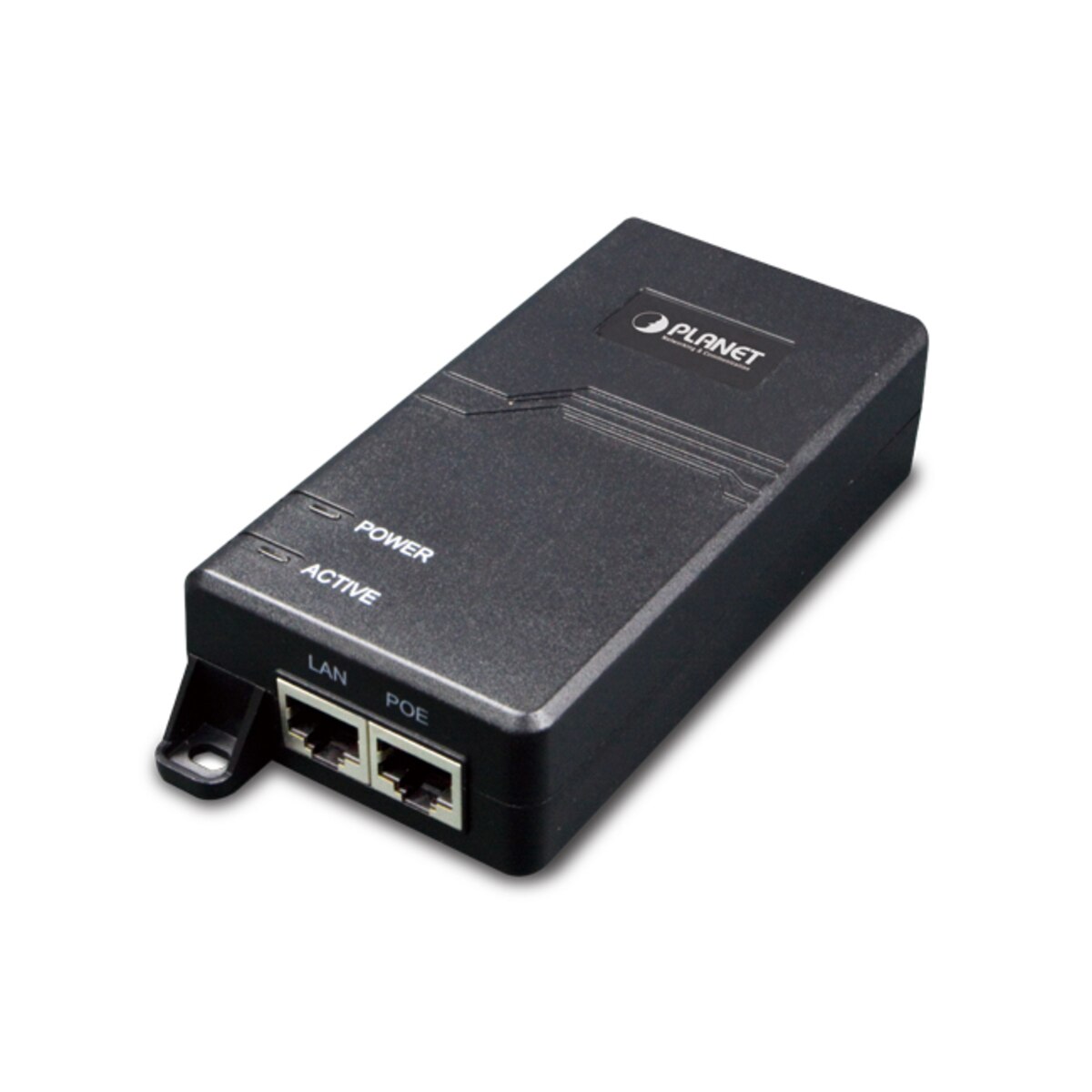

POE-172


Single-Port 10/100/1000Mbps Ultra PoE Injector (60 Watts, internal PWR)


Interface

  • 2 x RJ45 interfaces
  • - 1-port 10/100/1000Mbps Data + Power output
  • - 1-port 10/100/1000Mbps Data input
  • 1 x AC 100-240V input power socket


Power over Ethernet

  • Ultra Power over Ethernet PSE
  • Up to 60 watts of power on 4-pair UTP
  • Backward compatible with IEEE 802.3at/af PD device
  • Auto-detection of PoE IEEE 802.3at/af equipment and devices to check whether there’s any damage done via incorrect installation
  • Remote power feeding up to 100m


Hardware

  • All-in-one compact size design
  • Internal power supply
  • LED indicators for Power LED and Active LED (PoE ready/in-use)
SKU POE-172
(0)No Reviews yet
Back

Details

Hardware Specifications
InterfaceLAN: 1 x RJ45 STP, “Data” Input Port
PoE: 1 x RJ45 STP, “Data + Power” Output Port
AC Connector: 1 x AC input power socket, IEC-320 C6
Network CableUltra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
802.3af/at PoE (15W/30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)
LED IndicatorSystem: Power x 1 (green)
PoE Port: Active, PoE ready/in-use x 1 (green)
Data Rate10/100/1000Mbps
Dimensions (W x D x H)115 x 62.5 x 31 mm
Weight235g
Unit Output VoltageDC 56V, 1.08A
Power Requirements100-240V AC @50/60Hz, 1.5A max.
Power Consumption60 watts max.
Operating Temperature0 ~ 50 degrees C
Storage Temperature-10 ~ 70 degrees C
Operating Humidity5 ~ 95%, relative humidity, non-condensing
Storage Humidity5 ~ 95%, relative humidity, non-condensing
Power over Ethernet
PoE StandardUltra PoE over 4-pair UTP cable,
IEEE 802.3at Power over Ethernet Plus End-span/Mid-span PSE
PoE Power Supply TypeEnd-span + Mid-span
Power Pin AssignmentPair 1 End-span: 1/2 (+), 3/6 (-)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)
PoE Power OutputDC 56V/60-watt PoE via 4-pair
DC 56V/30-watt PoE via 2-pair
Standards Conformance
Standards ComplianceIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Regulatory ComplianceFCC Part 15 Class B, CE
