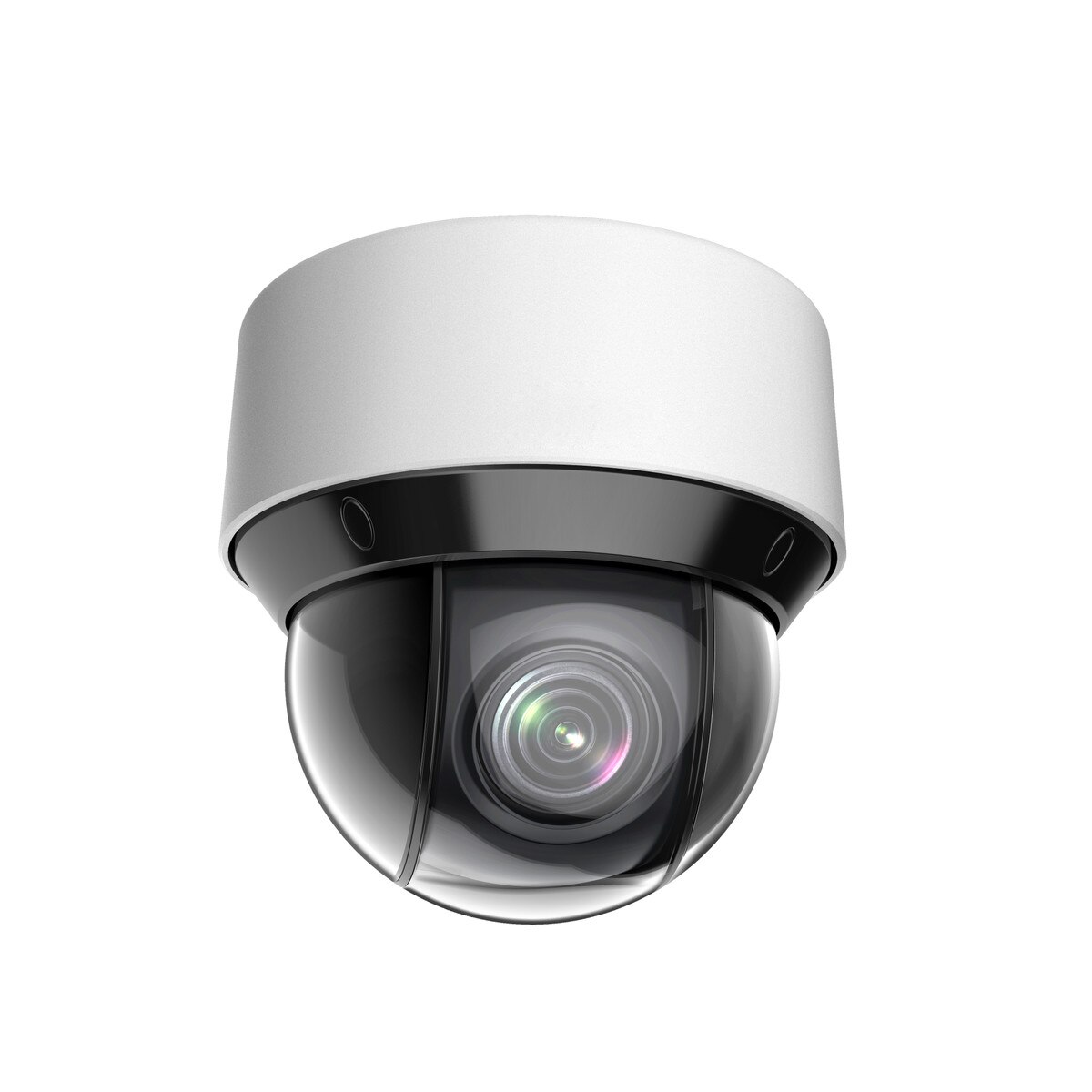

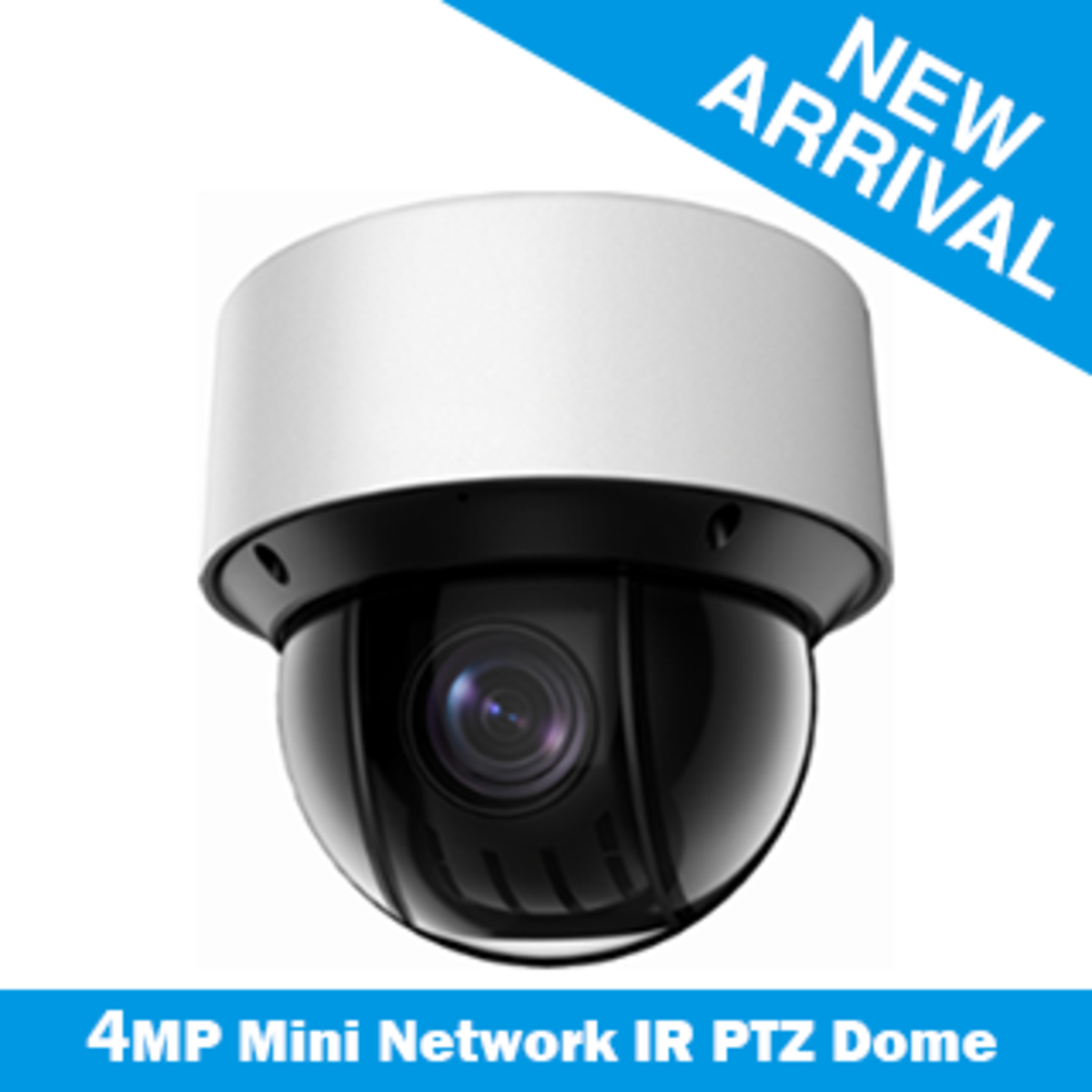

SC-1A24-IR
4-inch 4 MP 25X Powered by DarkFighter IR Network Speed Dome
- High quality imaging with 4 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25× optical zoom allows for closer viewing of subjects in expansive areas
- Up to 50 m IR range ensures safety at night
- Water and dust resistant (IP66)
Details
Camera
- Image Sensor
- 1/2.8" Progressive Scan CMOS
- Max. Resolution
- 2560 × 1440
- Min. Illumination
- Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed
- 1/1 s to 1/30,000 s
- Day & Night
- IR cut filter
- Zoom
- 25x optical, 16x digital
- Slow Shutter
- Yes
Lens
- Focal Length
- 4.8 to 120 mm
- FOV
- Horizontal FOV 53.3° to 2.6°, vertical FOV 30.6° to 1.5°, diagonal FOV 60.5° to 3°
- Focus
- Auto, semi-auto, manual
- Aperture
- Max. F1.6
- Zoom Speed
- Approx. 3.4 s
Illuminator
- Supplement Light Type
- IR
- Supplement Light Range
- IR Distance: up to 50 m
- Smart Supplement Light
- Yes
- IR Wavelength
- 850 nm
PTZ
- Movement Range (Pan)
- 0° to 360°
- Movement Range (Tilt)
- -5° to 90°
- Pan Speed
- Pan speed: configurable from 0.1° to 300°/s; preset speed: 350°/s
- Tilt Speed
- Tilt speed: configurable from 0.1° to 160°/s, preset speed 200°/s
- Proportional Zoom
- Yes
- Presets
- 300
- Preset Freezing
- Yes
- Patrol Scan
- 8 patrols, up to 32 presets for each patrol
- Pattern Scan
- 4 pattern scans, record time over 10 minutes for each scan
- Park Action
- Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D Positioning
- Yes
- PTZ Status Display
- Yes
- Scheduled Task
- preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust
- Power-Off Memory
- Yes
Video
- Main Stream
- 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
- 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
- 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
- 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
- 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264/MJPEG
- H.264 Type
- Baseline Profile/Main Profile/High Profile
- H.265 Type
- Main profile
- Scalable Video Coding (SVC)
- H.264 and H.265 encoding
- Region Of Interest (ROI)
- 8 fixed regions for each stream
Audio
- Audio Compression
- G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate
- 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC)
- Audio Sampling Rate
- AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz
- Environment Noise Filtering
- Yes
Network
- Protocols
- IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- Simultaneous Live View
- Up to 20 channels
- API
- Open Network Video Interface (Version 18.12), Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host
- Up to 32 users; 3 user levels: administrator, operator, and user
- Security
- Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network Storage
- NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client
- iVMS-4200, HikCentral Pro, Hik-Connect
- Web Browser
- IE 10-11, Chrome 57+, Firefox 52+, Safari 11+
- Image Parameters Switch
- Yes
- Image Settings
- Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night Switch
- Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR)
- 120 dB
- SNR
- >52dB
- Defog
- Digital Defog
- Image Stabilization
- No
- Image Enhancement
- BLC, HLC, 3D DNR
- Privacy Mask
- 24 programmable polygon privacy masks, mask color or mosaic configurable
- Regional Focus
- Yes
- Regional Exposure
- Yes
Interface
- Ethernet Interface
- 1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board Storage
- Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Audio
- 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
- 1 output (line out), line level, output impedance: 600 Ω
- Alarm
- 2 inputs, 2 outputs
- Reset
- Yes
Event
- Basic Event
- Motion detection, video tampering alarm, exception, alarm input and output
- Smart Event
- Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- Alarm Linkage
- Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Smart Tracking
- Manual tracking, auto-tracking
General
- Power
- 12 VDC, Max. 18 W; PoE (802.3at)
- Dimension
- Ø 169 mm × 161 mm (Ø 6.65" × 6.34")
- Approx. 2.45 kg (5.40 lb.)
- Operating Condition
- -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
- General Function
- Mirror, password protection
Approval
- Protection
- IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
