TPU250

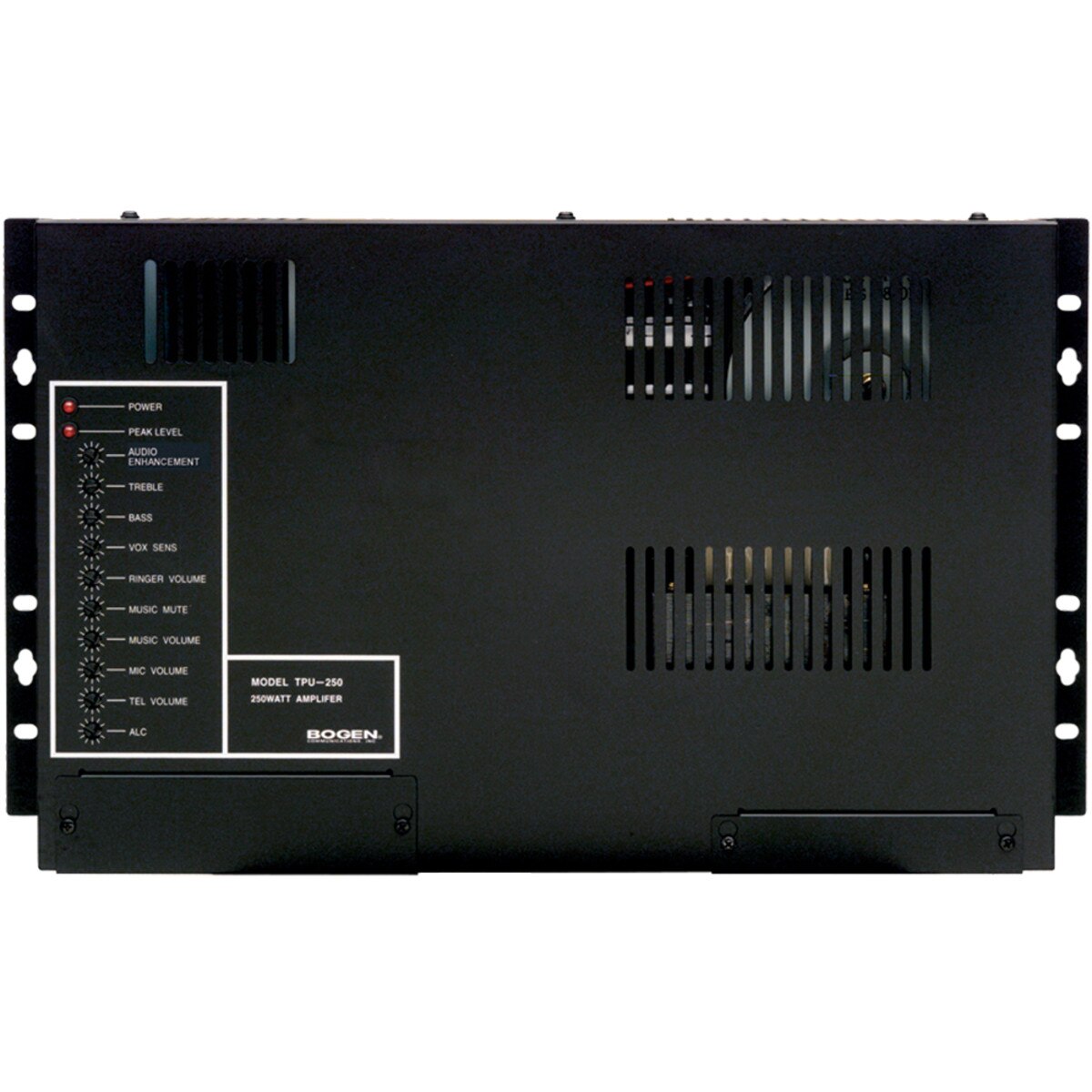

TPU Series Mixer-Amplifiers


The Bogen TPU Series Mixer-Amplifiers are unique, wall- or rack-mounted amplifiers, specifically designed for telephone paging applications. These compact units provide voice-activated muting of music when paging, completely eliminating the need for manual activation of switches and the use of external relays. The page channel features automatic output leveling (ALC) as channel input varies, which is particularly important in telephone paging applications, where persons with varying voice levels and paging techniques have access to the system. Installation and maintenance are simple; all connections, adjustments, and mounting are accomplished with a screwdriver.


  • 35, 60, 100, and 250-watt models
  • Balanced or unbalanced 16-ohm, 25V, 25V CT, and 70V outputs are available for the TPU35B/60B/100B models; 25V and 70V outputs are available on the TPU250
  • Inputs for 600-ohm balanced telephone line, Lo-Z balanced microphone, and background music
  • Music input (RCA jack or screw terminals)
  • Page from telephone and/or microphone
  • Signal-activated paging channel automatically mutes background music
  • Listed to UL Standard 60065 for U.S. & Canada
SKU TPU250
