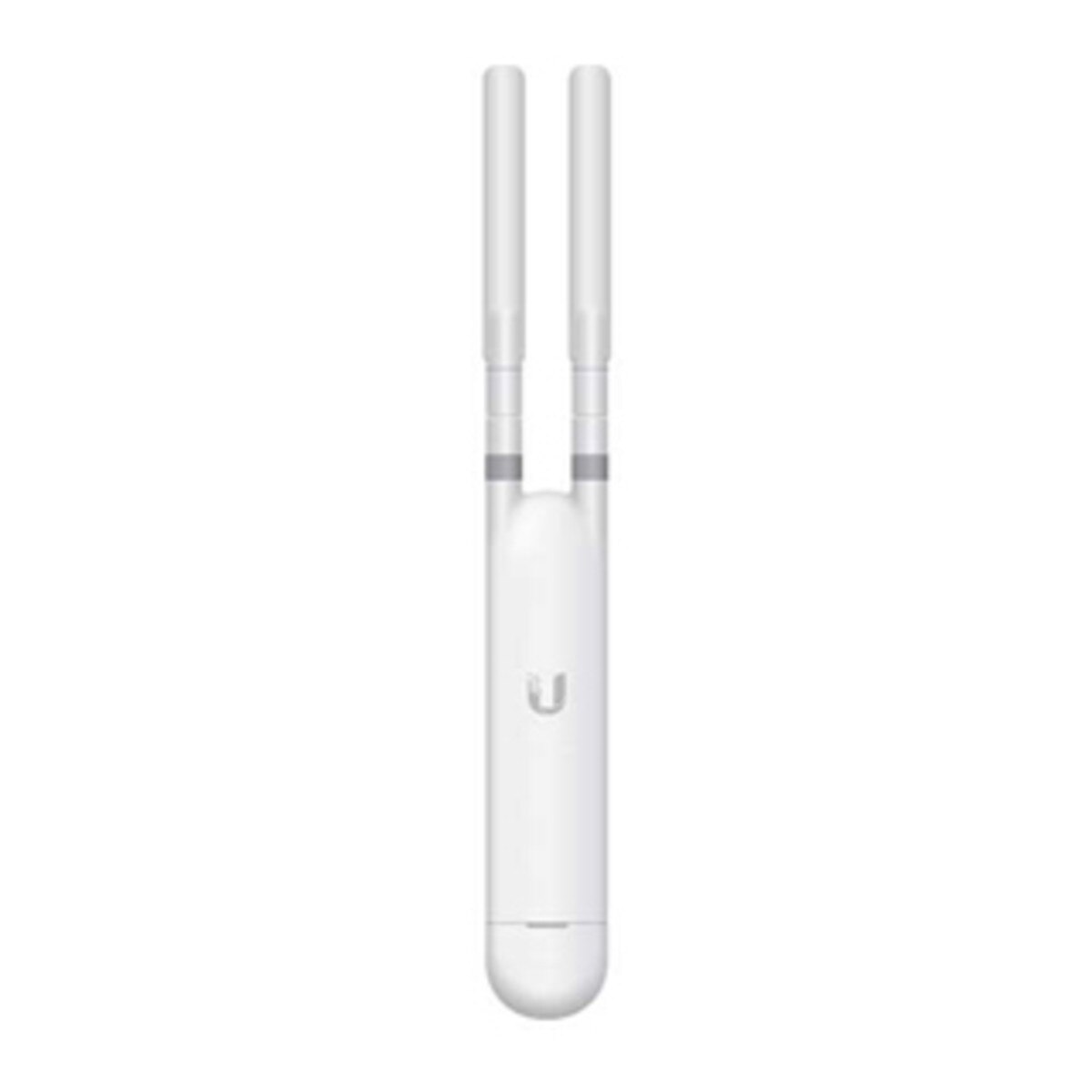

UAP-AC-M
Details
Dimensions
353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35")
Weight
152 g (5.36 oz) with Antennas
Networking Interface
(1) 10/100/1000 Ethernet Port
Buttons
Reset
Power Method
24V Passive PoE (Pairs 4, 5+; 7, 8 Return);
802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
(Supported Voltage Range: 44 to 57VDC)
Power Supply
24V, 0.5A Gigabit PoE Adapter*
Power Save
Supported
Maximum Power Consumption
8.5W
Maximum TX Power
2.4 GHz 20 dBm
5 GHz 20 dBm
Antennas (2) External Dual-Band Omni Antennas
2.4 GHz 3 dBi
5 GHz 4 dBi
Wi-Fi Standards
802.11 a/b/g/n/ac
Wireless Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID
Up to Four per Radio
Mounting
Wall/Pole/Fast-Mount (Kits Included)
Operating Temperature
-30 to 70° C (-22 to 158° F)
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
Advanced Traffic Management
VLAN
802.1Q
Advanced QoS
Per-User Rate Limiting
Guest Traffic Isolation
Supported
WMM
Voice, Video, Best Effort, and Background
Concurrent Clients
250+
Supported Data Rates (Mbps)
Standard Data Rates
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35")
Weight
152 g (5.36 oz) with Antennas
Networking Interface
(1) 10/100/1000 Ethernet Port
Buttons
Reset
Power Method
24V Passive PoE (Pairs 4, 5+; 7, 8 Return);
802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
(Supported Voltage Range: 44 to 57VDC)
Power Supply
24V, 0.5A Gigabit PoE Adapter*
Power Save
Supported
Maximum Power Consumption
8.5W
Maximum TX Power
2.4 GHz 20 dBm
5 GHz 20 dBm
Antennas (2) External Dual-Band Omni Antennas
2.4 GHz 3 dBi
5 GHz 4 dBi
Wi-Fi Standards
802.11 a/b/g/n/ac
Wireless Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID
Up to Four per Radio
Mounting
Wall/Pole/Fast-Mount (Kits Included)
Operating Temperature
-30 to 70° C (-22 to 158° F)
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
Advanced Traffic Management
VLAN
802.1Q
Advanced QoS
Per-User Rate Limiting
Guest Traffic Isolation
Supported
WMM
Voice, Video, Best Effort, and Background
Concurrent Clients
250+
Supported Data Rates (Mbps)
Standard Data Rates
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
