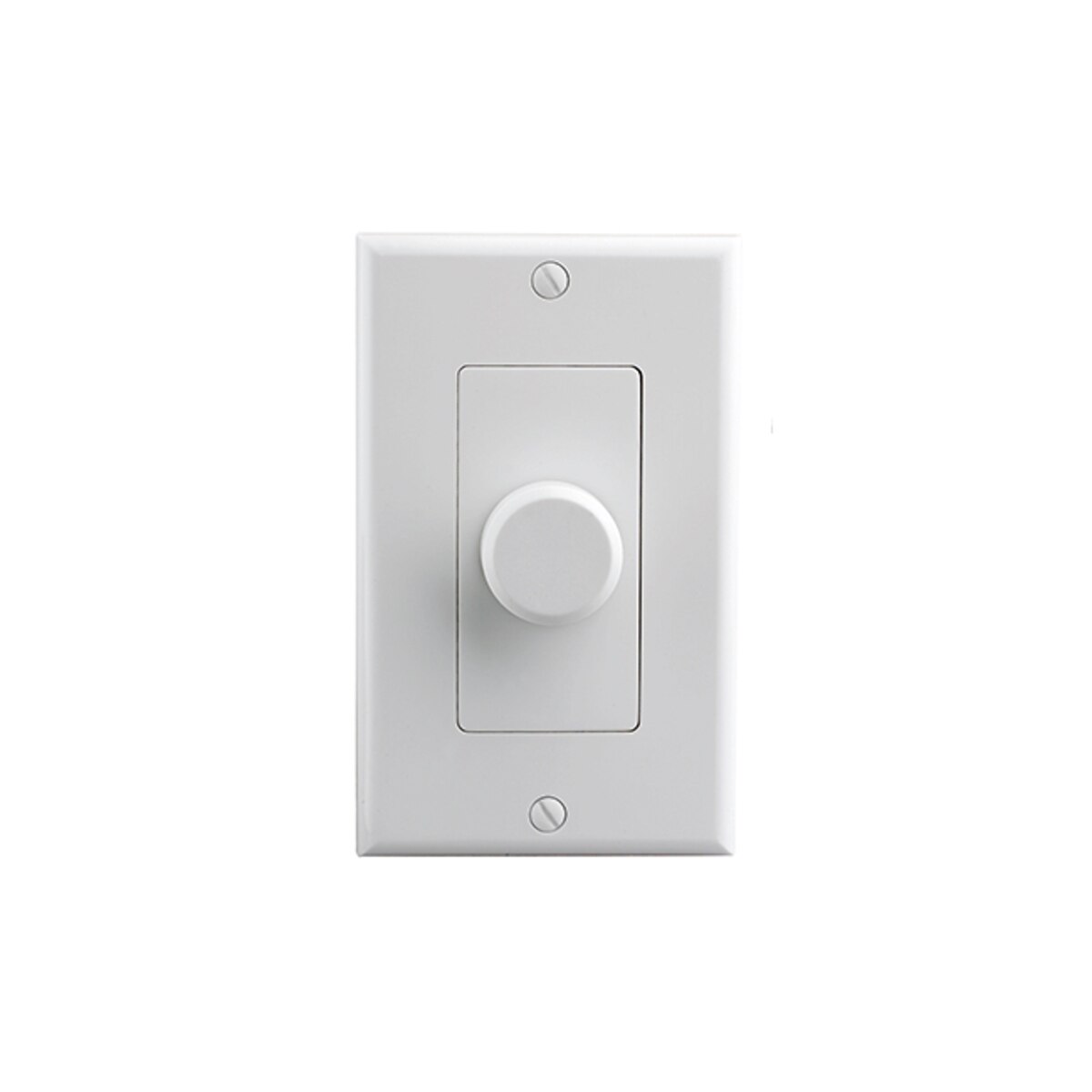

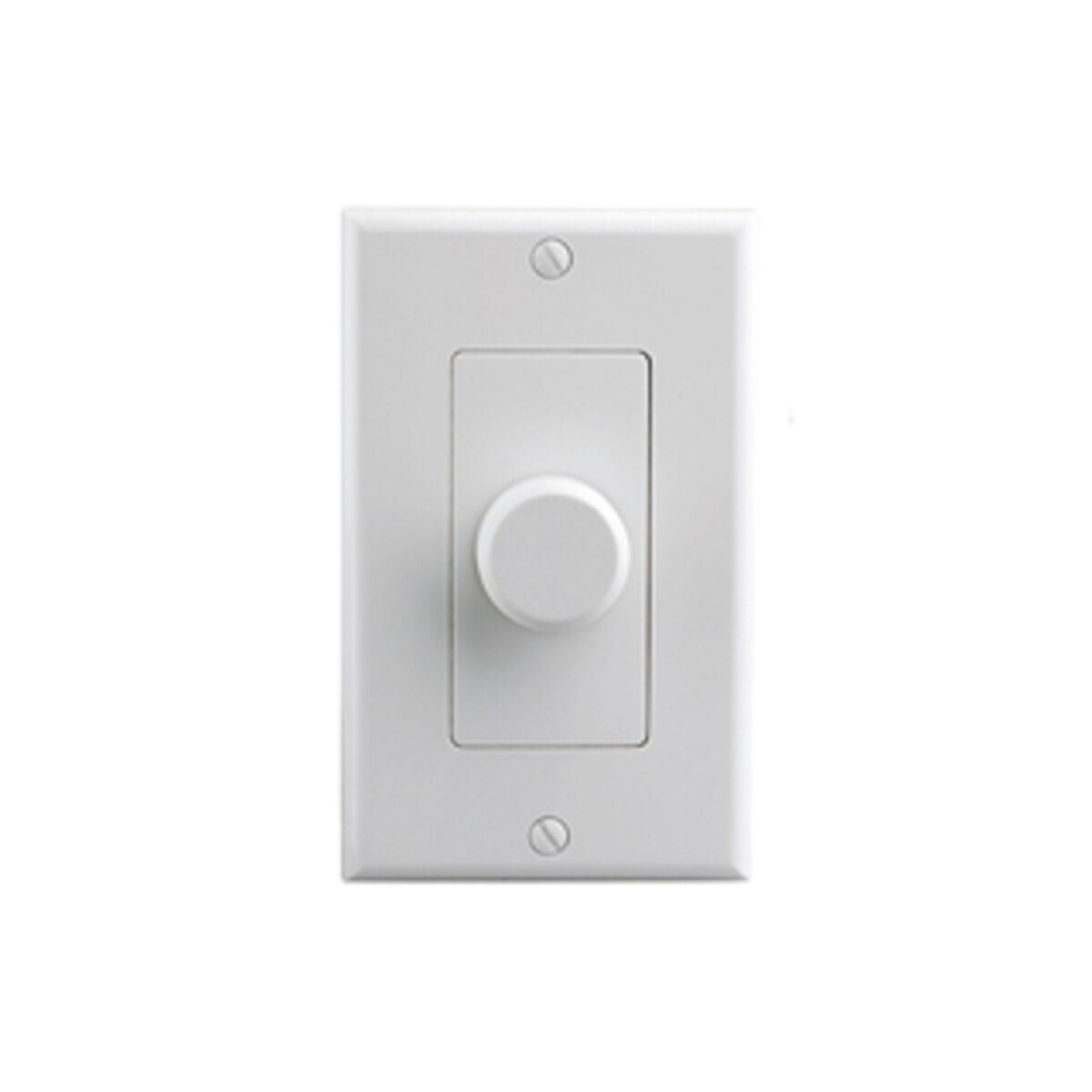

VC-3300-R

Rotary Volume Control 100 Watt

• 10 volume positions
• Control volume from any room
• Works with all audio & video systems
• Standard & Decora wallplates included
• Mounts in-wall
• Frequency Response: 20 Hz-20 kHz
• Power Handling: 100 Watts (RMS) / Channel
• Attenuation: 100 Watts MAX / Channel
• 1^st position (slider at bottom): Full off
• 2^nd and 3^rd position: attenuate 6 +/- 1 dB per step
• 4^th through 9^th position: attenuate 3 +/- 1 dB per step
• 10^th position: Full on
• Insulation Resistance: 100 megaohm @ 500 V D.C.
• Dielectric Withstanding Voltage: 500 V AC, 1 minute
• Weight: 7.8 oz.
• Depth: 2 5/8”.
