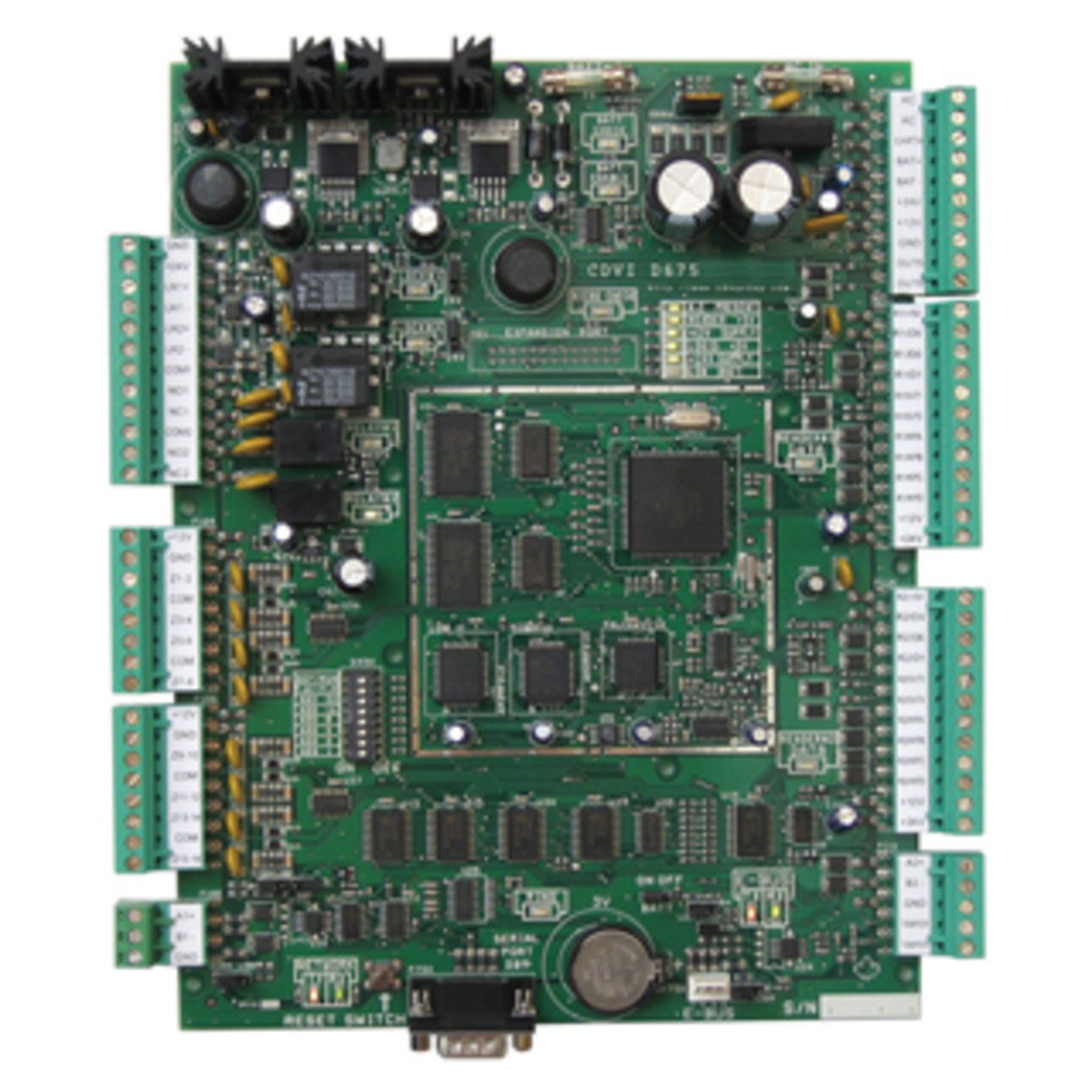

CT-V900-A

SKU CT-V900-A
(0)No Reviews yet
Back

Details

  • Control 2 doors (Reader In / REX Out) or 1 Door (Reader In / Reader Out)
  • Add up to 6 more doors to the CT-V900-A using the CA-A470-A expansion module
  • 10,920 on-board card database
  • 256 Schedules
  • 256 Access Levels
  • 2048 Event Buffer
  • 16 on-board inputs (*using ATZ 2R/3R)
  • 2 on-board 12 Vdc or 24 Vdc field-selectable lock outputs
  • 2 on-board Form C dry contact relay outputs (N/O – N/C)
  • Fully distributed database architecture (access decisions made locally)
  • Flash firmware – Upload firmware via the Centaur Server
  • E-Bus technology add-on hardware modules can be up to 1220m (4000ft) away from the CT-V900-A
  • 2.5A switching power supply
  • Supports common Wiegand, Track 2 ABA (mag stripe) and BCD (keypad) formats
  • Easy maintenance with snap-off terminal blocks
  • Battery backup functionality (2 x 12V 7AH gel-type batteries)
  • Lithium battery protection in case of complete power failure
