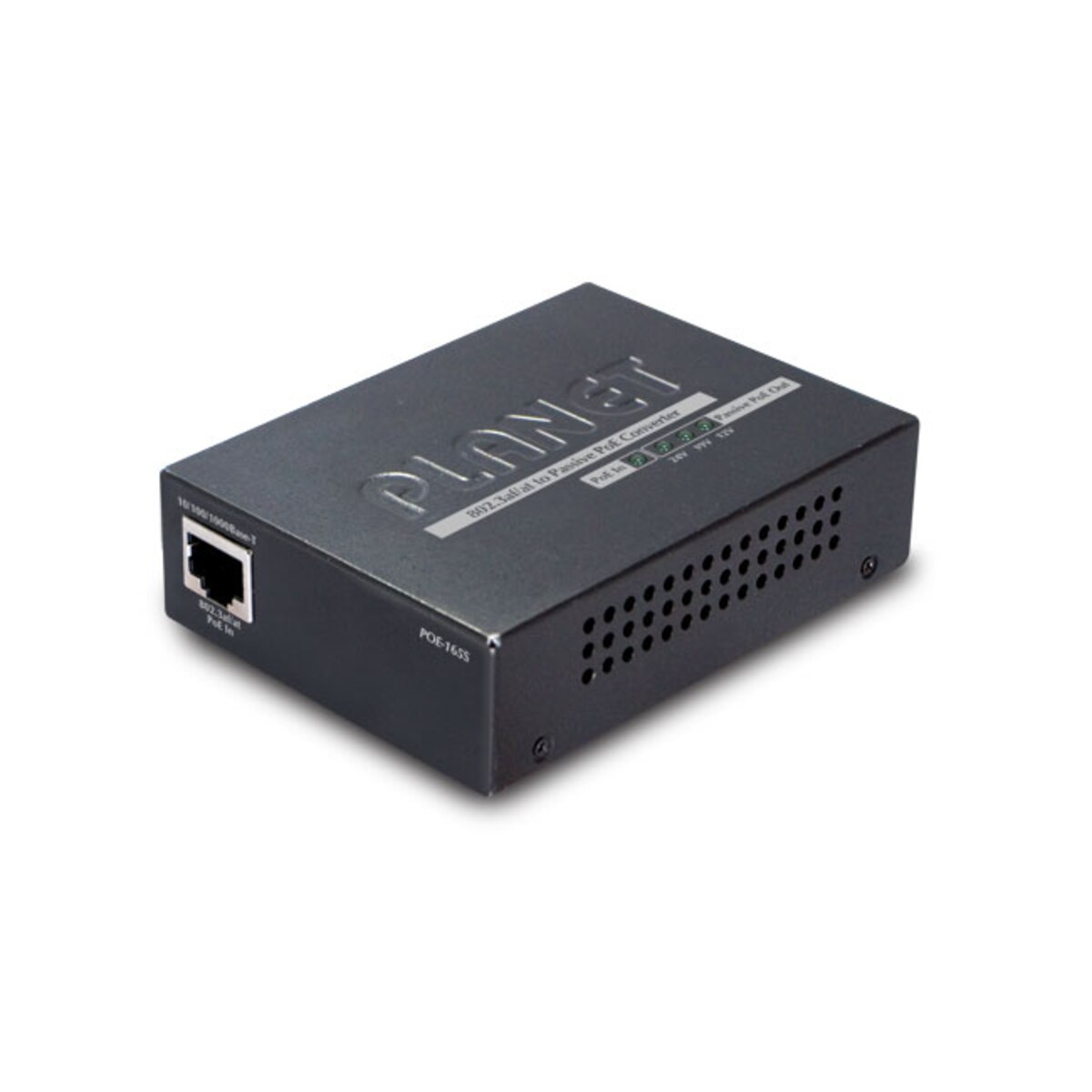

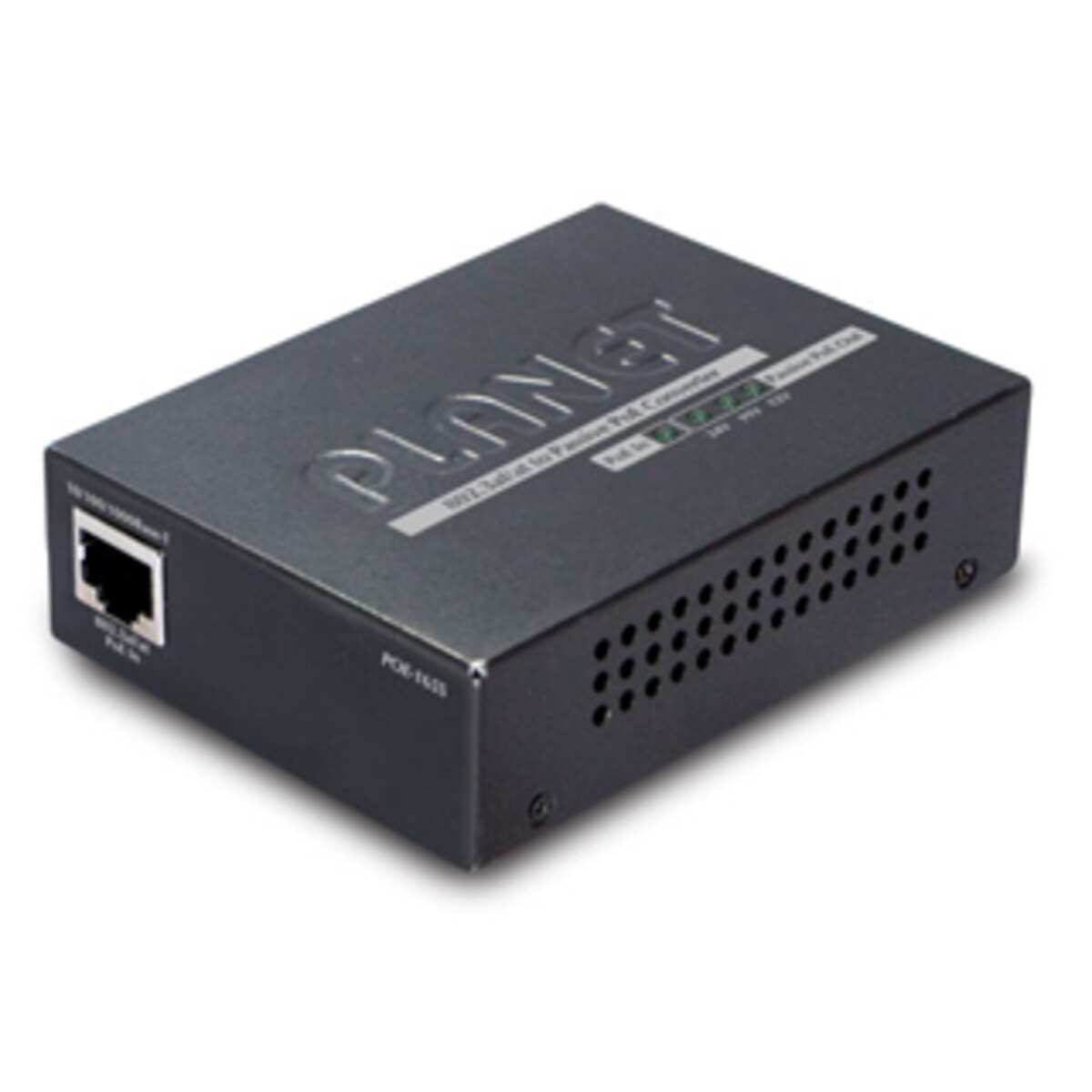

POE-165S
IEEE802.3at/af to Passive POE Power Converter
Interface
- 2-Port 10/100/1000Mbps RJ-45 interfaces
- - 1-Port Data + Power output
- - 1-Port Data + 802.3af/at Power input
Standard Power over Ethernet Input Port
- Complies with IEEE 802.3af/at Power over Ethernet PD
Passive Power over Ethernet Output Port
- Non-IEEE 802.3af/at injector port
- 1 DC 12V/19V/24V DIP switch
- Power Output Pin: 4/5(+), 7/8(-)
Hardware
- Metal case
- LED indicators for PoE-In LED and 12V/19V/24V Output Voltage LED
Standard Compliance
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3at High Power over Ethernet
- IEEE 802.3af Power over Ethernet
- FCC Part 15 Class A, CE
Details
Hardware Specification | |
Interface | PoE In Port: 1 x IEEE 802.3af/at RJ-45 STP / PD Passive PoE Out Port: 1 x non-802.3af/at RJ-45 STP / PSE |
LED Indicator | System ● PoE In (Green) Passive PoE Out ● 12V (Green) ● 19V (Green) ● 24V (Green) |
Network Cable | 10Base-T: 2-Pair UTP Cat. 3, 4, 5 100Base-TX: 2-Pair UTP Cat. 3, 4, 5 1000Base-T: 2-Pair UTP Cat. 5, 5e, 6 EIA/TIA-568 100-ohm STP |
DIP Switch | 12V/19V/24V DC Output Voltage |
Power Input | IEEE 802.3af/at Power over Ethernet End-Span / Mid-Span Class 4 PD |
Power Output | Maximum Passive PoE 12V DC, 0.7A 19V DC, 0.7A 24V DC, 0.7A |
Power Output Pin Assignment | 4/5(+), 7/8(-) |
Data Rate | 10/100/1000Mbps |
Maximum Distance | Up to 100meters (Including POE-165S) |
Dimensions (W x D x H) | 94 x 70.3 x 26.2 mm |
Weight | 182g |
Number of devices that can be powered | 1 |
Operating Temperature | -40 ~ 75 degrees C |
Storage Temperature | -40 ~ 85 degrees C |
Operating Humidity | 5 ~ 90%, Relative Humidity, non-condensing |
Storage Humidity | 5 ~ 90%, Relative Humidity, non-condensing |
Compliant PLANET Outdoor Wireless Devices | |
2.4GHz | WNAP-6306 (v2) @ 12V |
5GHz | WNAP-7206 @ 12V WNAP-7300 @ 19V/24V WNAP-7320 @ 12V/19V/24V |
Standards Conformance | |
Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at High Power over Ethernet IEEE 802.3af Power over Ethernet |
Regulation Compliance | FCC Part 15 Class A, CE |
